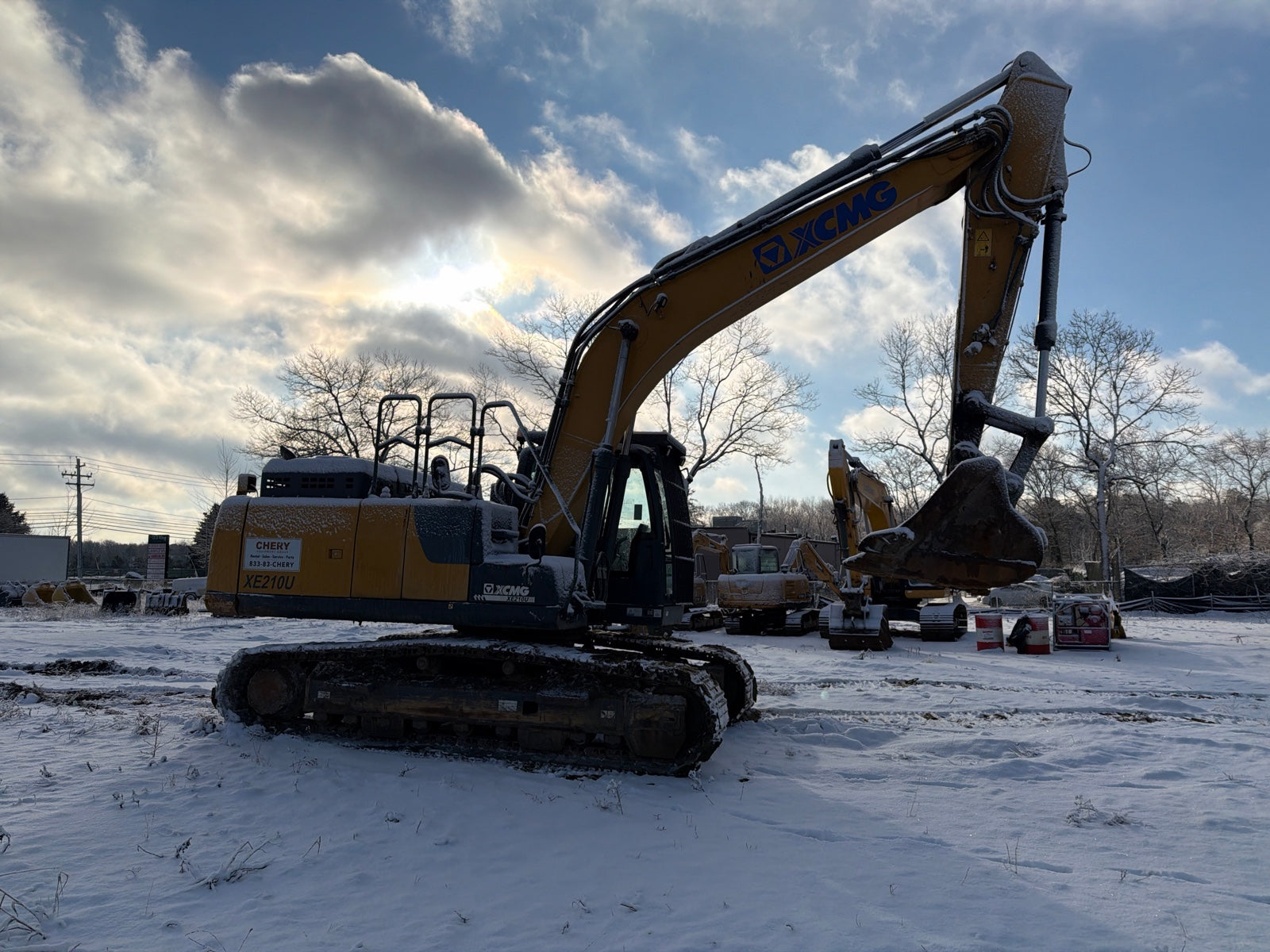

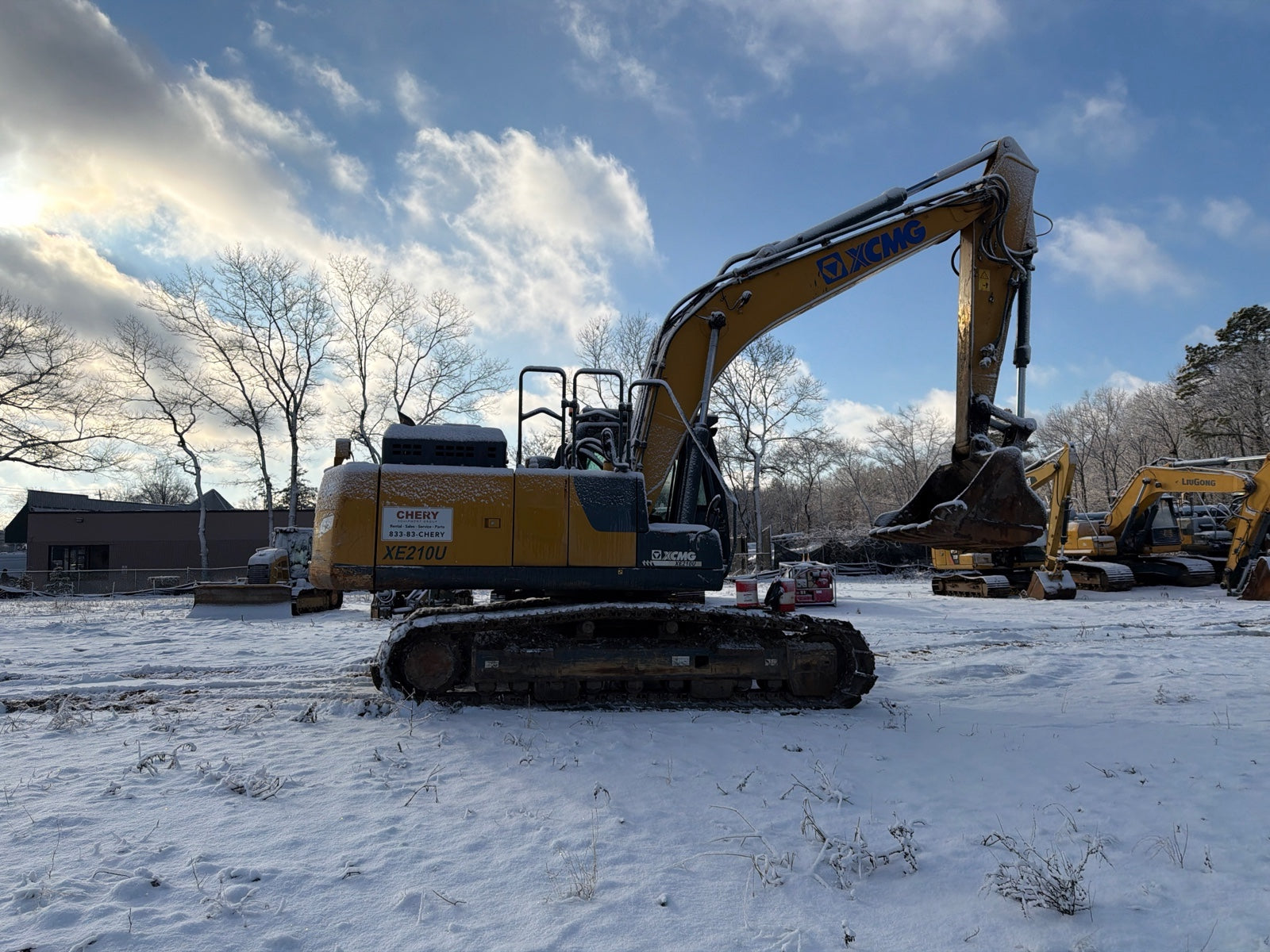

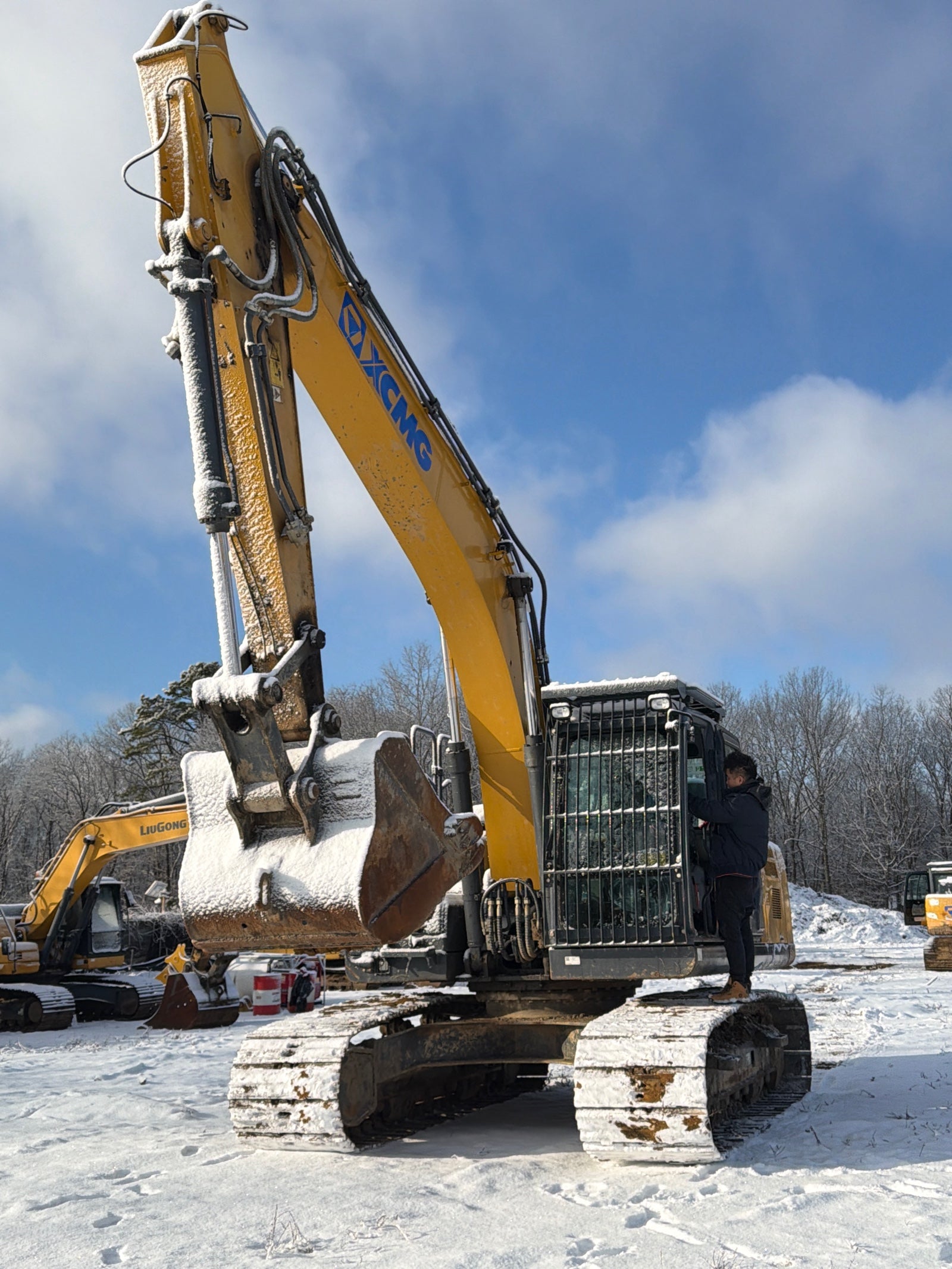

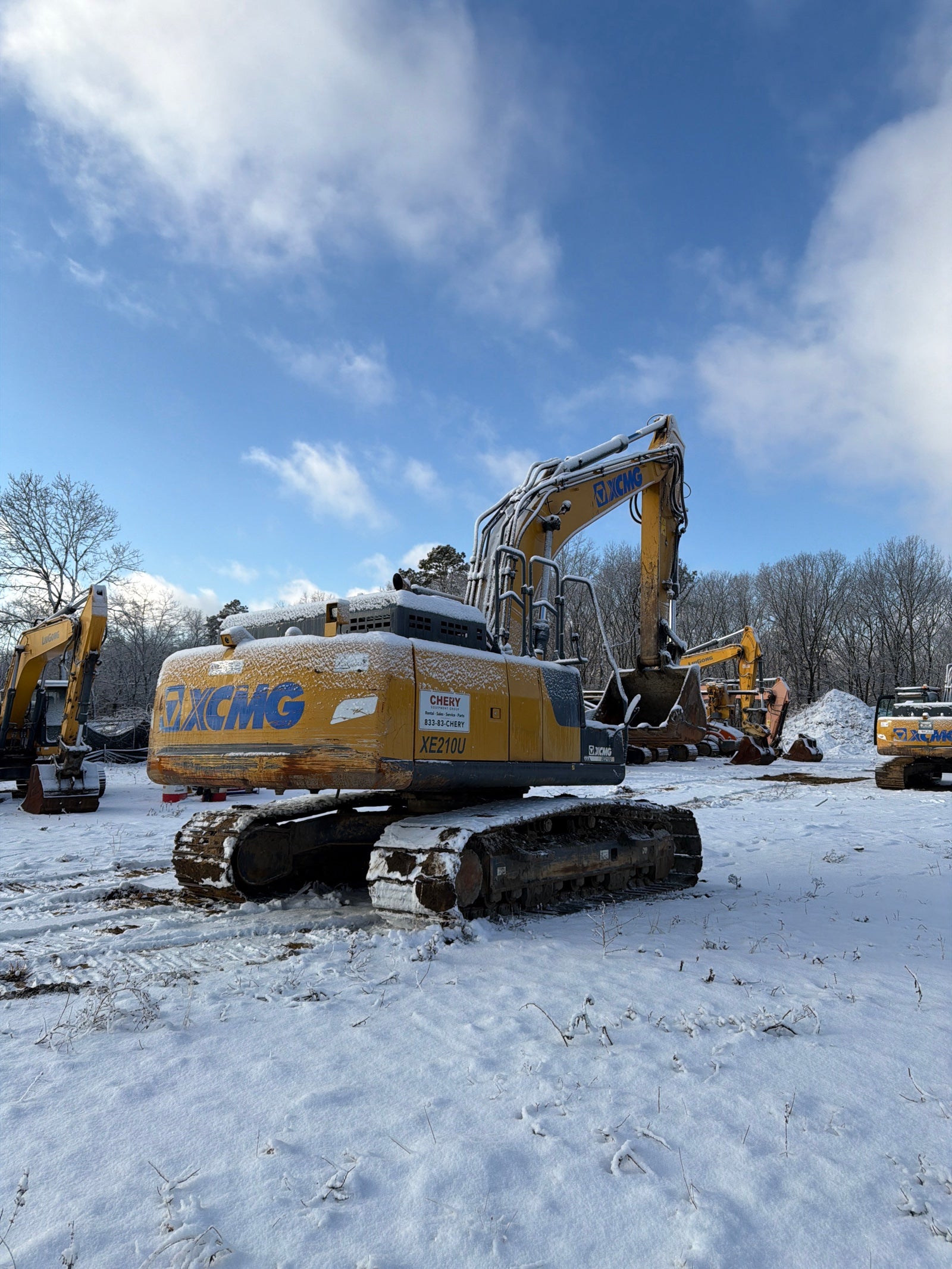

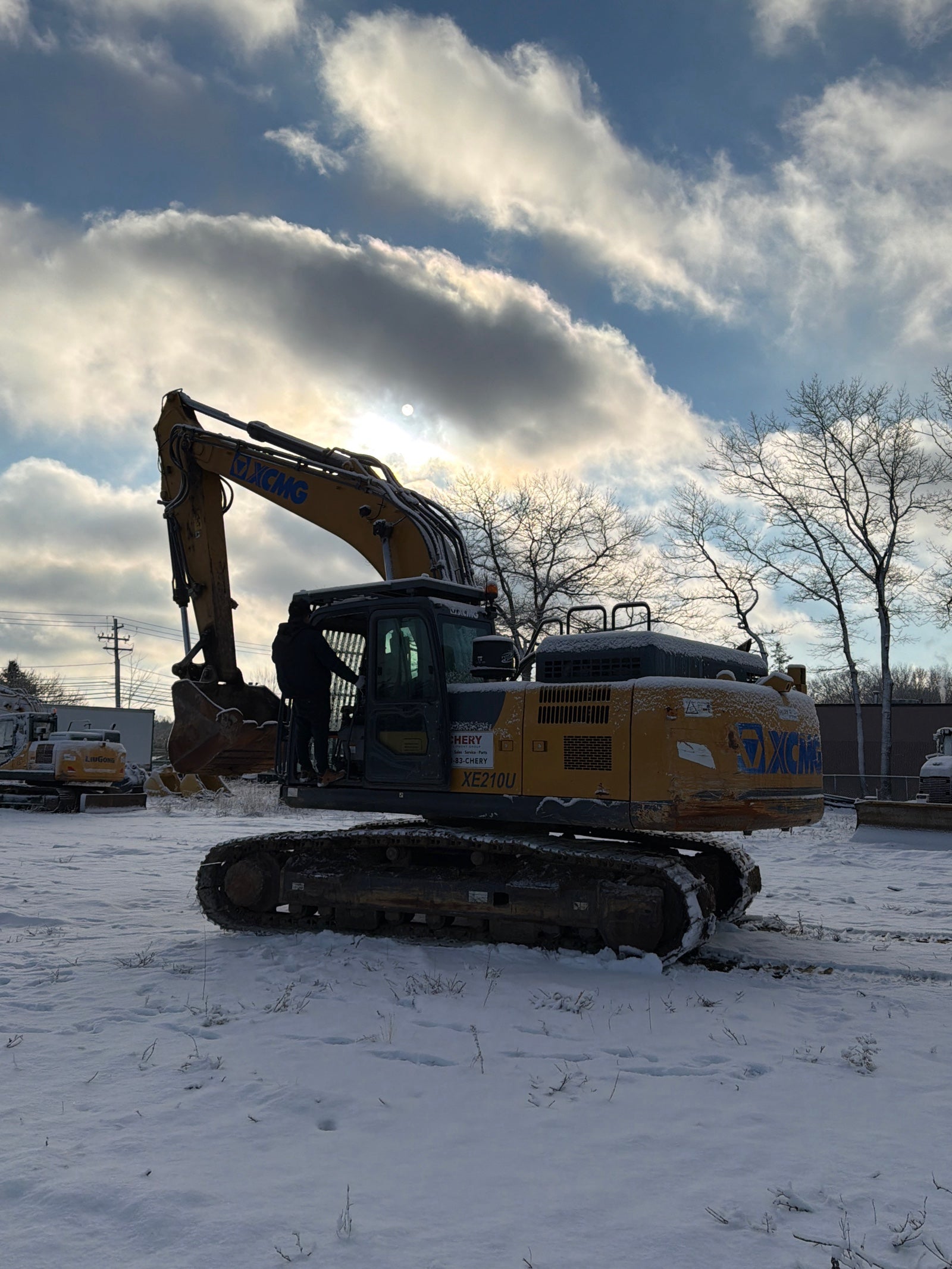

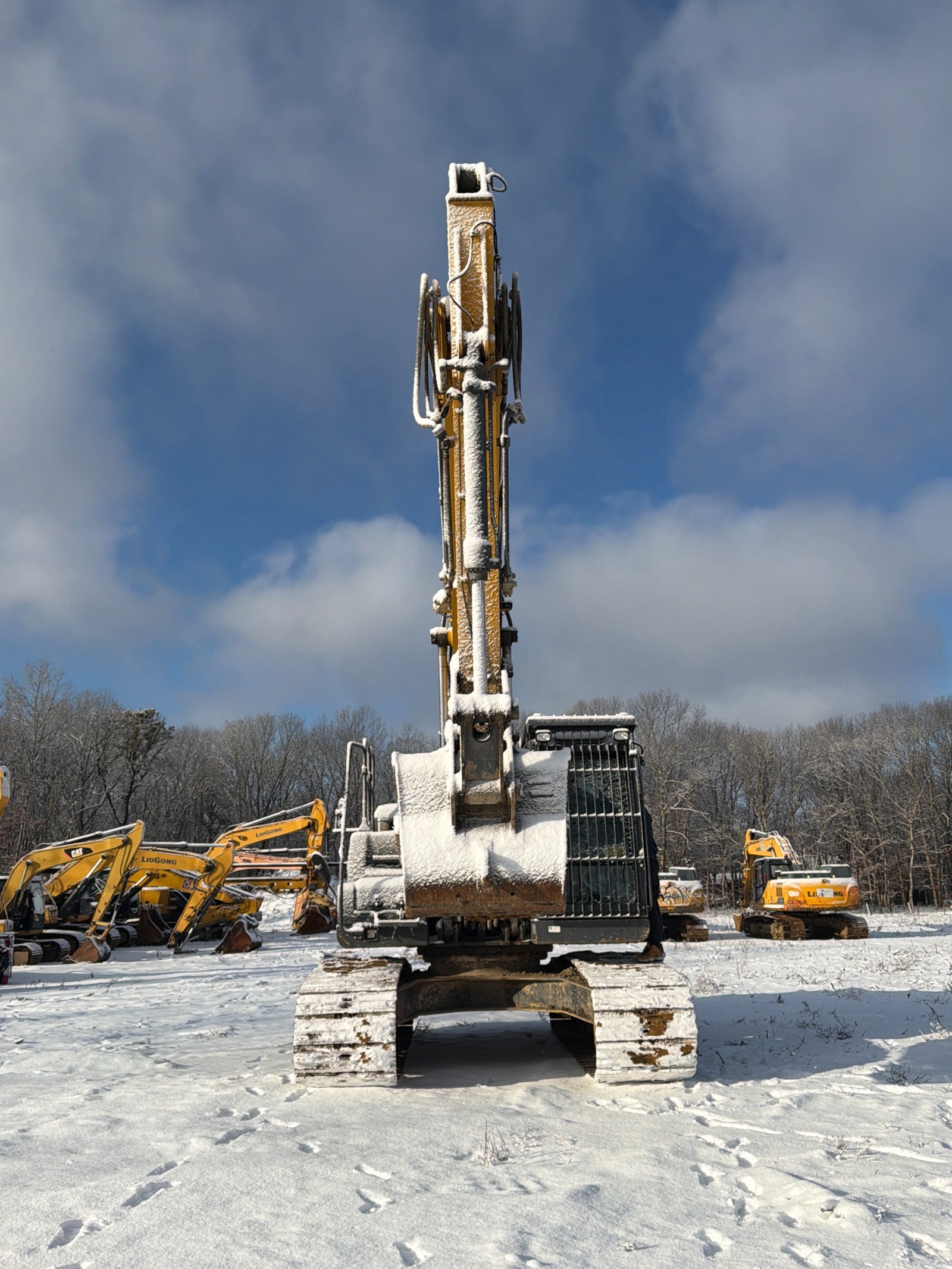

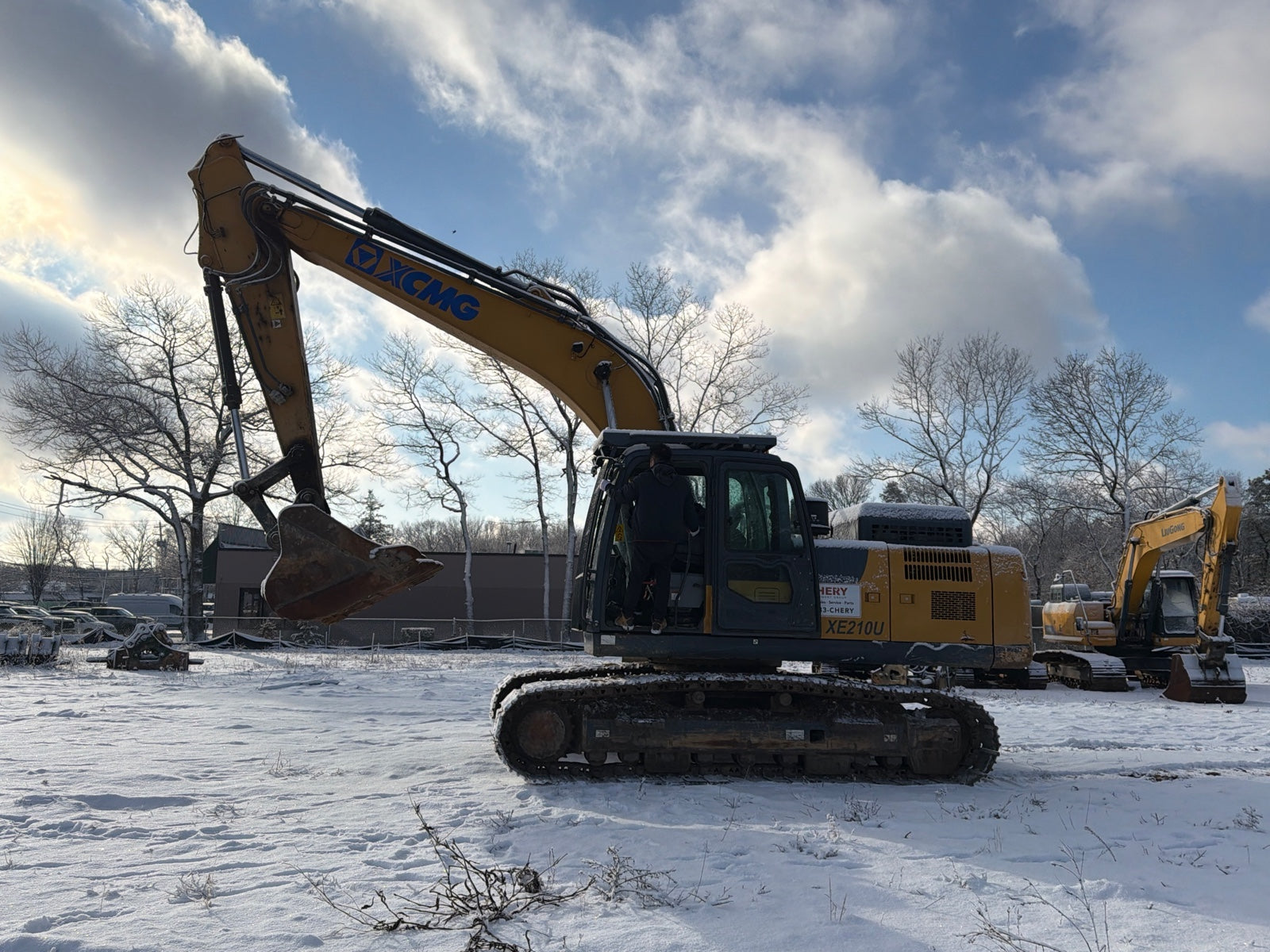

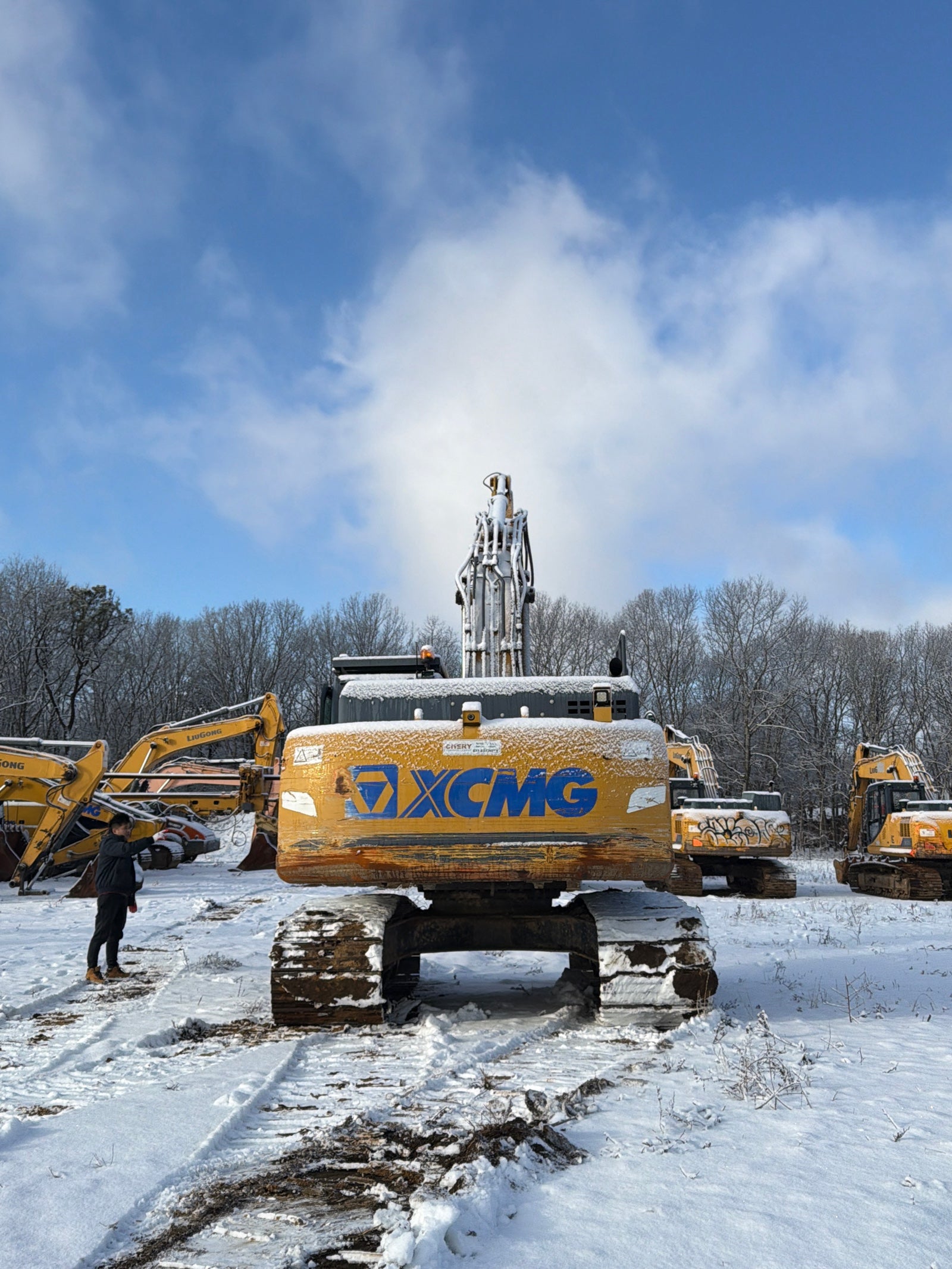

XCMG XE210U Mid-Size Hydraulic Excavator | Cummins QSB6.7 Stage IV Engine
This used XCMG XE210U mid-size hydraulic excavator is an operational, heavy-duty workhorse powered by a Cummins QSB6.7 Stage IV turbo diesel engine—delivering reliable power and versatile performance for medium-to-large construction projects. Equipped with XCMG Intelligent Control System (XICS), multi-mode hydraulics, and a premium operator cab, it’s ideal for general excavation, site development, road construction, and material handling. Built with high-strength welded structures and lifetime-lubricated undercarriage components, it’s engineered for durability in demanding jobsite conditions.
Core Specifications
| Parameter | Details |
|---|---|

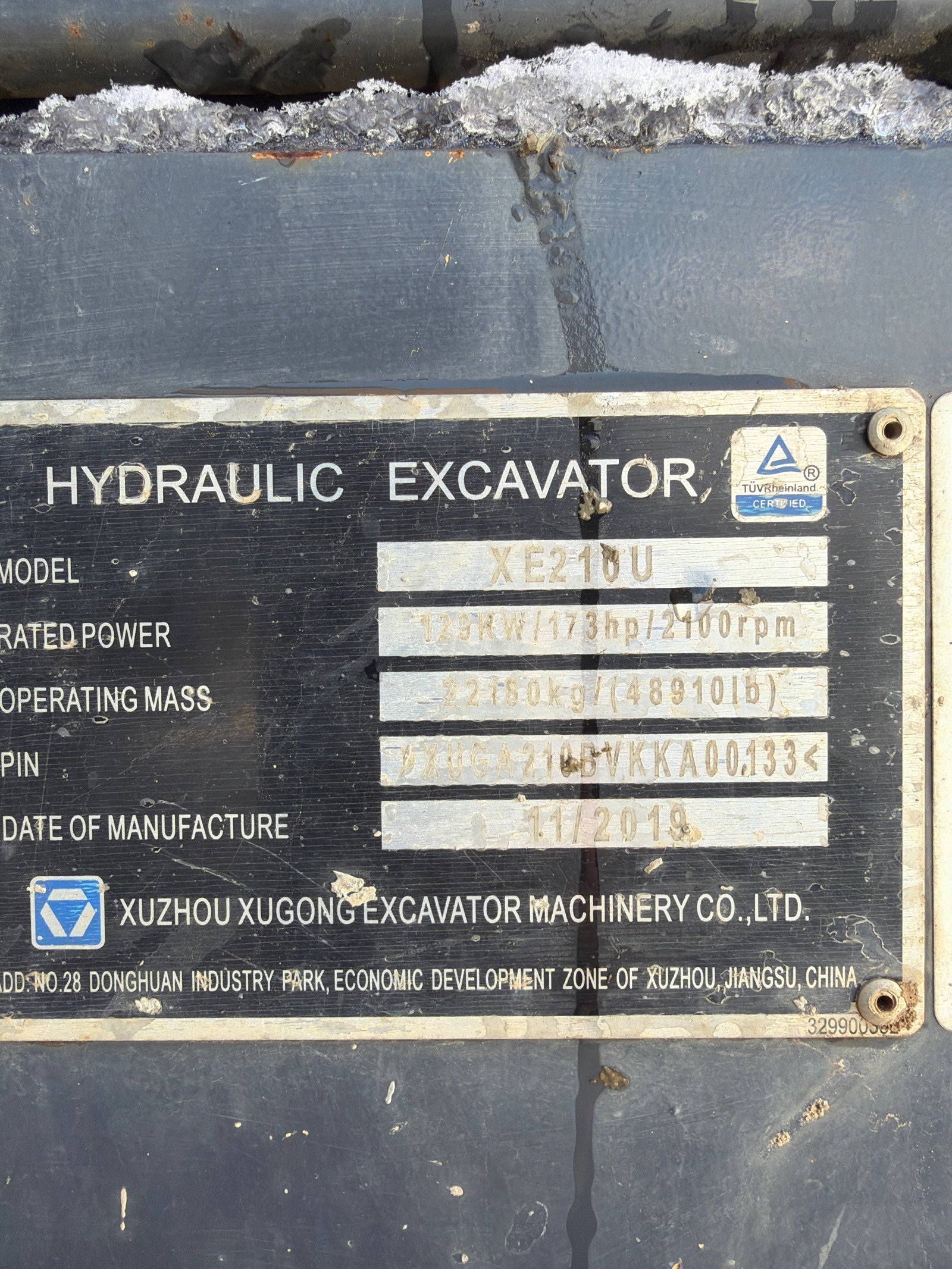

| Model | XCMG XE210U Hydraulic Excavator |
| Condition | Used - Fully Operational |
| Engine | Cummins QSB6.7 (Stage IV) | 6-cylinder | Water-cooled | Turbocharged (EGR & SCR, no DPF) |
| Rated Power | SAE J1995: 173 hp @ 2100 rpm | SAE J1349/ISO 9249: 153 hp |
| Maximum Torque | 800 Nm @ 1500 rpm |
| Operating Weight (Options) | 2'7'' Shoe: 50,927 lb | 2' Shoe: 50,045 lb | 2'4'' Shoe: 50,486 lb |
| Bucket Capacity | Standard: 1.57 yd³ (SAE) | Optional: 0.65-1.57 yd³ (GP/HD/SD) |
| Travel Speed | Low: 2.2 mph | High: 3.5 mph |
| Hydraulic System | XICS Intelligent Control | 2× variable displacement axial piston pumps | 7 work modes + 3 power modes |
Working Performance & Metrics
| Metric | Specifications |
|---|---|
| Max Digging Depth | 21'11'' - 38'1'' (varies by boom/arm configuration) |
| Max Digging Reach | 30'11'' - 50'7'' (varies by boom/arm configuration) |
| Digging Force (ISO) | Bucket: 24,954-37,993 lbf | Arm: 11,016-29,675 lbf |
| Swing Performance | Max Speed: 11.8 rpm | Max Torque: 51,247 lbf·ft |
| Max Traction / Gradeability | 18.8 ton | 35° / 70% |
| Ground Pressure (Options) | 2'7'' Shoe: 522 psi | 2' Shoe: 653 psi | 2'4'' Shoe: 560 psi |
| Cab Noise Level | 71 dB(A) (ISO 6396) |
Key Dimensions & Undercarriage (Standard)
| Category | Details |
|---|---|
| Undercarriage | 9 lower/2 upper rollers (per side) | 49 track shoes (per side) | 190mm link pitch | 14'7'' track length | 2'7'' standard shoe width |
| Shipping Dimensions | Length: 31'8''-39'10'' (boom/arm dependent) | Width: 10'6'' | Height over cab: 9'9'' |
| Other Dimensions | Tail Swing Radius: 9'10'' | Ground Clearance: 1'7'' |
Fluid Capacities (US Gal)
| Component | Capacity |
|---|---|
| Fuel Tank | 105.7 |
| Hydraulic Oil Tank | 58 |
| Engine Oil | 6.3 |
| Cooling System | 6 |
| Urea (DEF) Tank | 11.1 |
| Swing Drive | 1.8 |
| Travel Device (each) | 1.1 |
Standard Equipment & Features
| System | Included Features |
|---|---|
| Engine & Controls | Auto-deceleration | Donaldson PSD air filter | XICS intelligent control |
| Hydraulics | Cross-sensing pump system | Gear-type pilot pump | Shock-absorbing hydraulic cylinders |
| Undercarriage | Lifetime-lubricated rollers | Floating seals | Induction-hardened shoes | Hydraulic track adjuster |

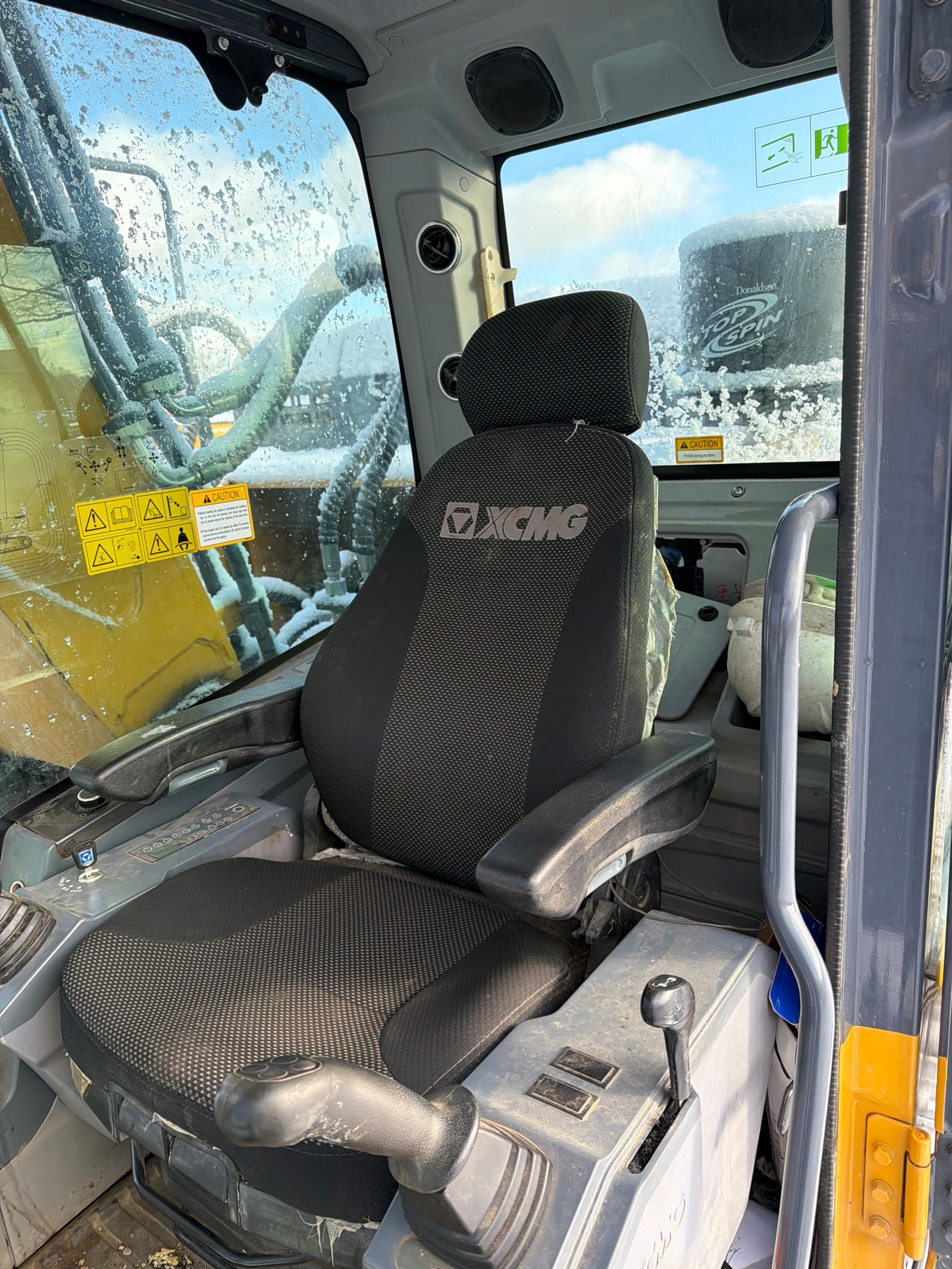

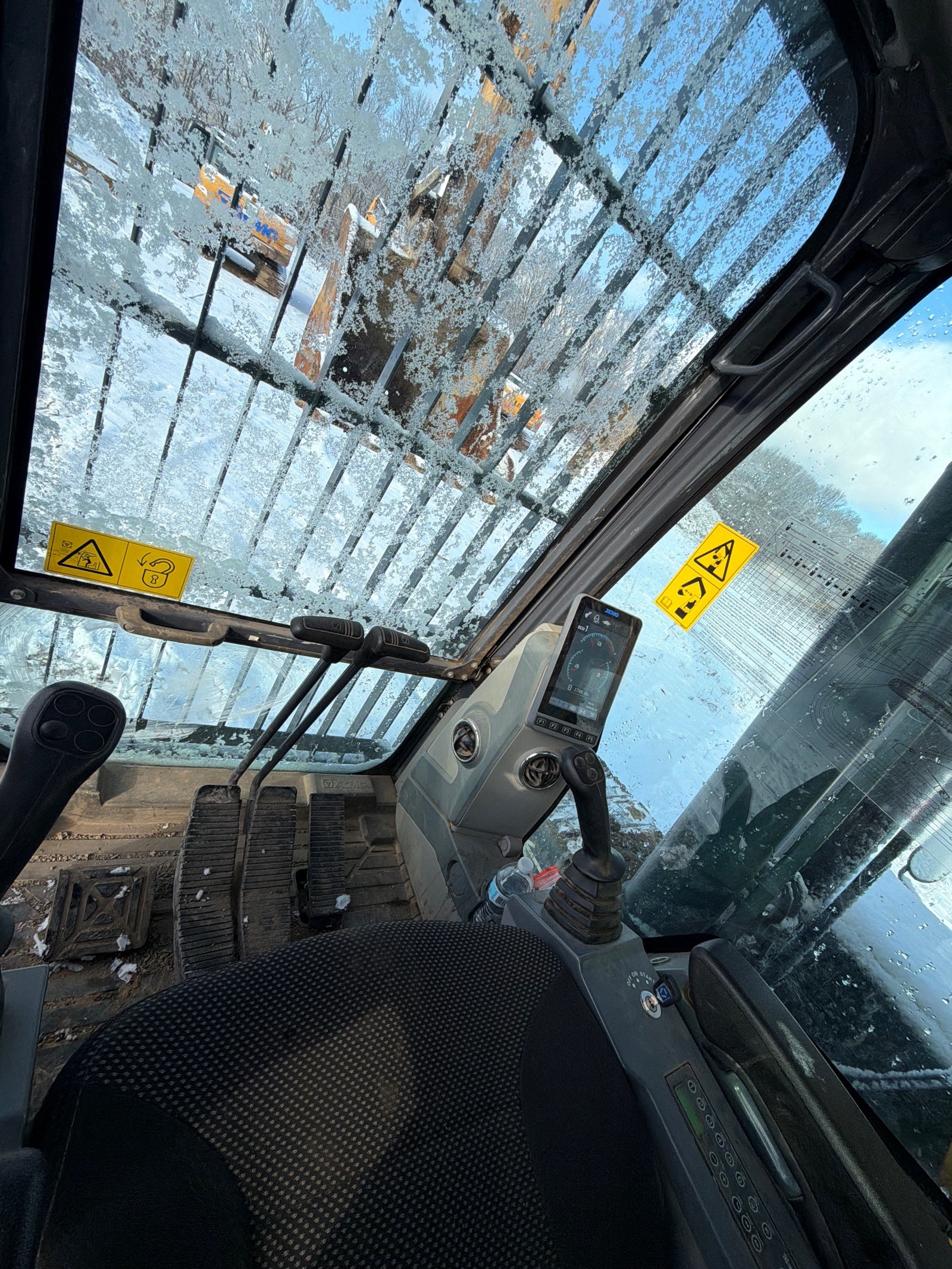

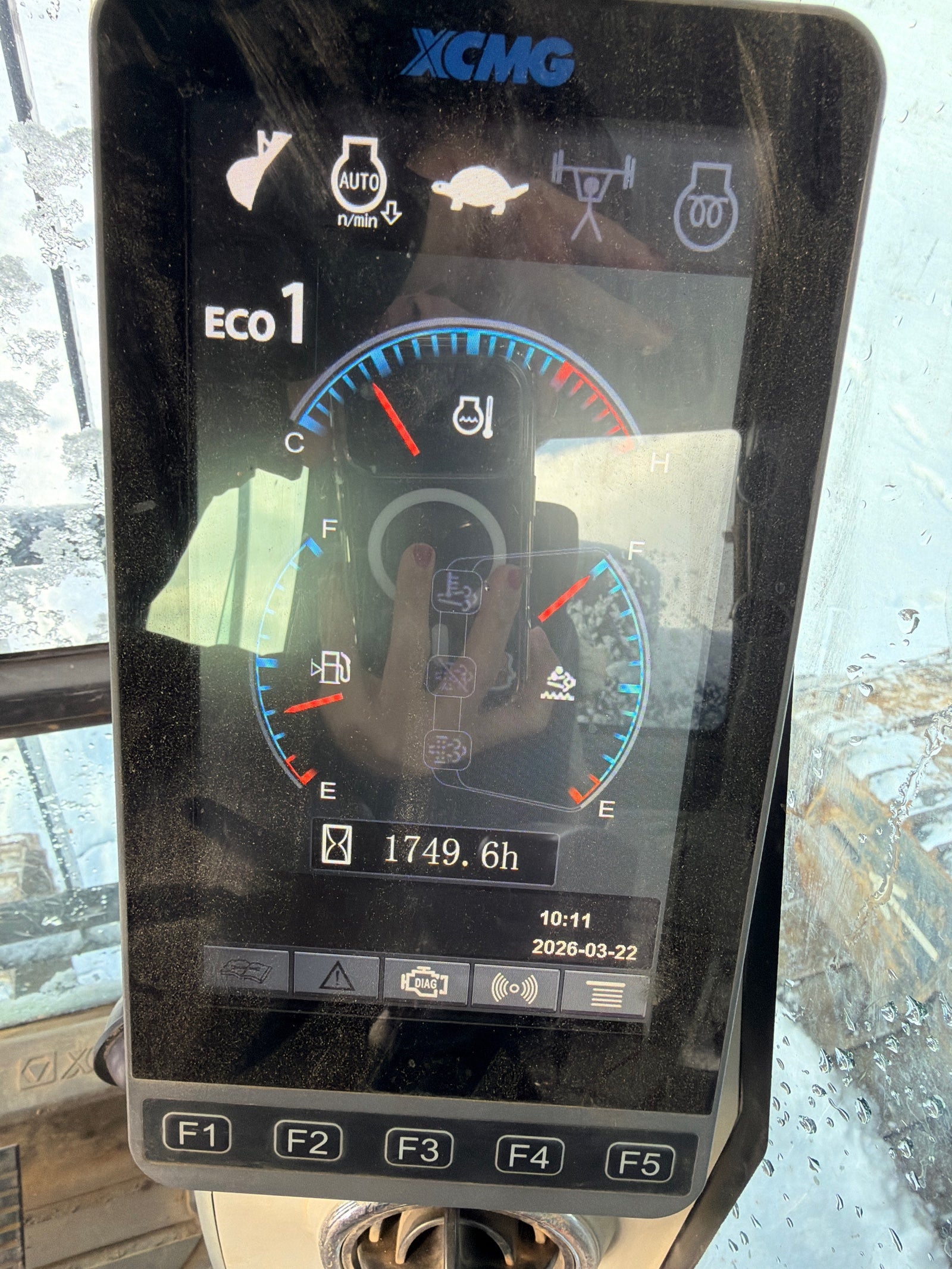

| Operator Cab | Pressurized/filtered cab | A/C/heating | Heated air suspension seat | Ergonomic joysticks | Color monitor |
| Electrical | 2×12V 150Ah batteries | 24V 70A alternator | 24V 7.8kW starter |
| Safety & Durability | High-strength welded structures | Heat-treated pins | Multi-disc track brakes (spring-applied/hydraulic-released) |
General Operation Requirements & Guidelines
• Requires valid commercial heavy equipment operation certification/CDL for safe use
• Operators must follow standard mid-size excavator safety protocols (cab restraints, ROPS/FOPS compliance)
• Pre-use inspections of hydraulic lines, undercarriage, engine, and digging components are mandatory
• Only operate on stable, graded ground; avoid soft soil/overloading beyond rated operating weight
• Regular maintenance (fuel/oil/DEF checks, filter replacements) with genuine XCMG/Cummins parts recommended
• Comply with Stage IV emission regulations for all jobsite operations; maintain DEF tank levels
• Ensure clear work zones around the machine during digging, swinging, and material loading; follow jobsite safety rules
• Hydraulic mode/power adjustments to be made per task requirements via on-cab color monitor
⚠️ AUCTION TERMS & IMPORTANT NOTES
NO WARRANTY • NO AFTER-SALES SUPPORT • ALL SALES FINAL
All specifications, dimensions, and features listed above are general descriptions for this model only. Actual product may have differences due to usage, maintenance, and normal wear. Please conduct an on-site inspection in person before bidding.
For more detailed information about this excavator, auction procedures, or inspection scheduling, please call us for consultation.
Auction Additional Terms
This is a consignment auction item. Our platform acts only as an auction facilitator. The buyer is solely responsible for all loading, transportation, and unloading of the equipment upon purchase. All listed pricing is for the product only; a 12% buyer’s premium will be applied to the final sale price. Optional attachments may be included (subject to on-site verification).
