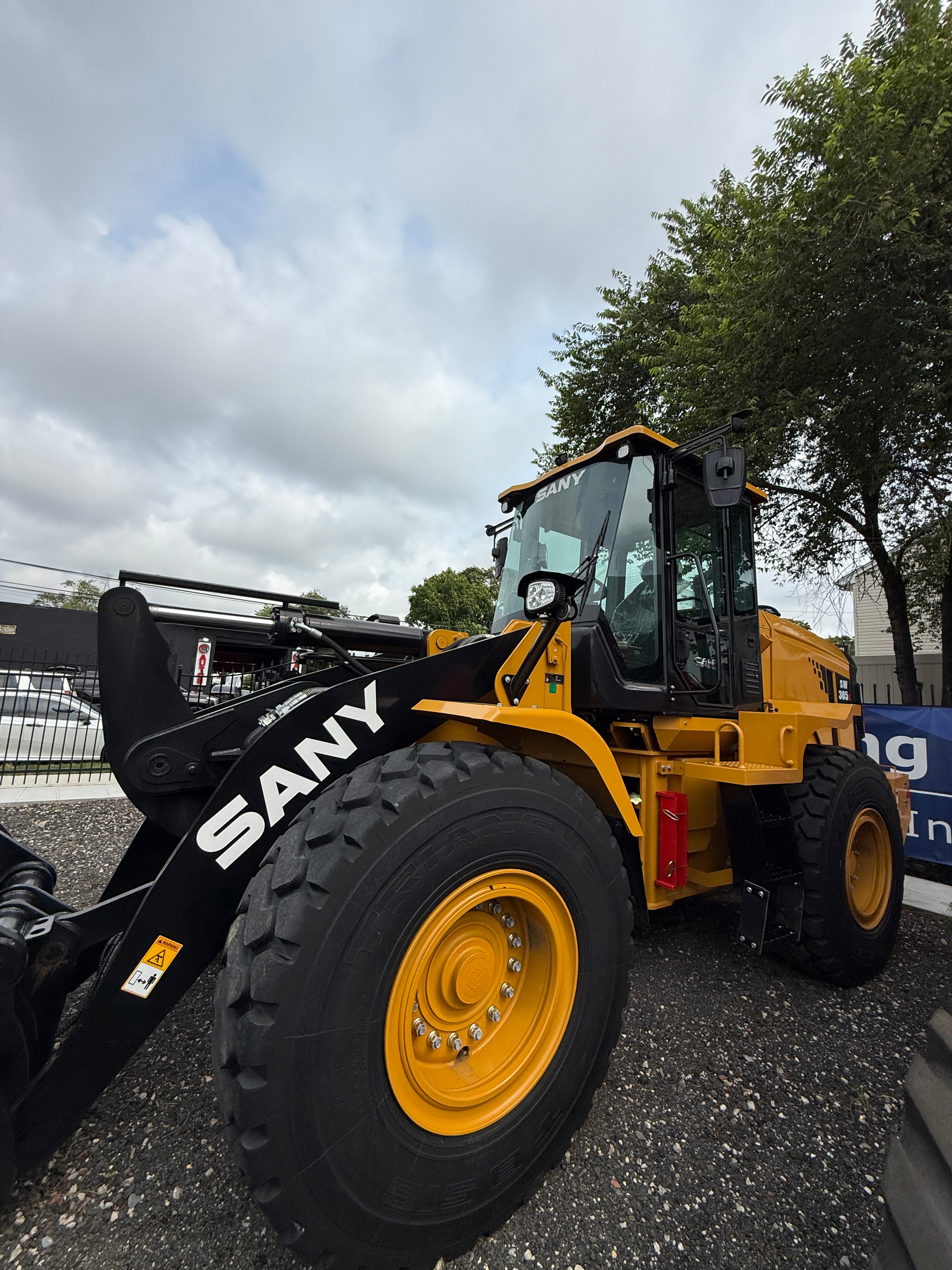

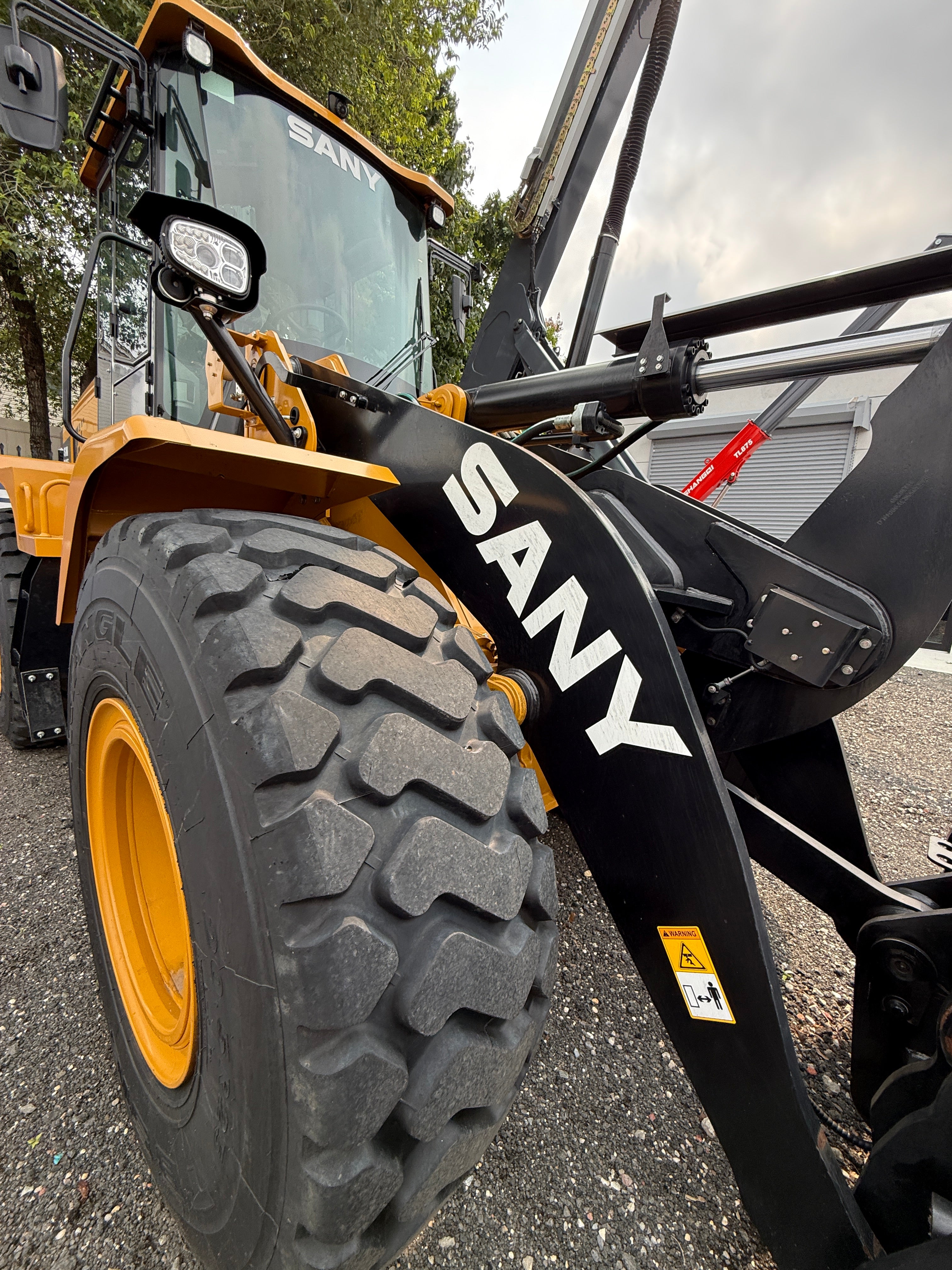

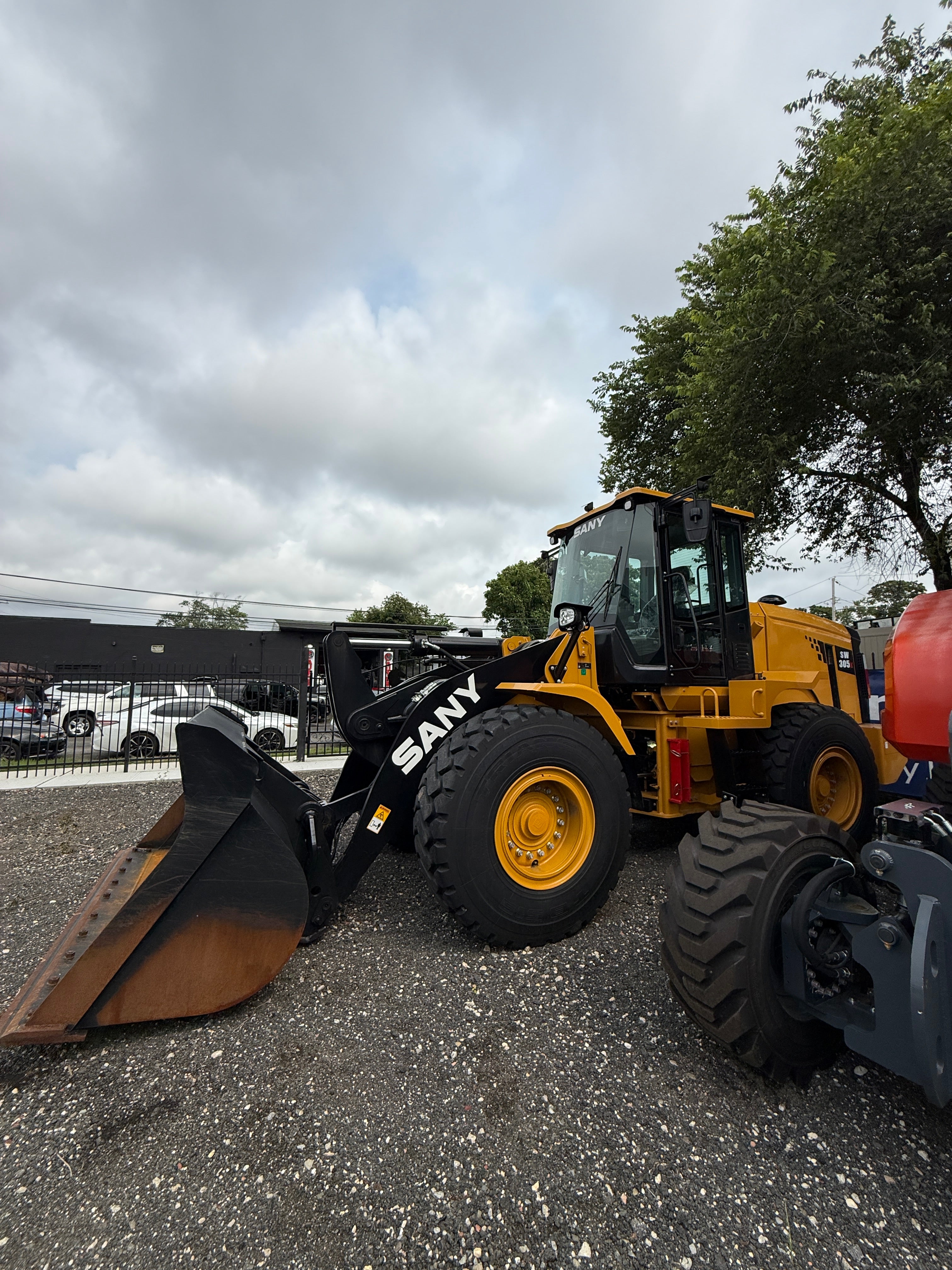

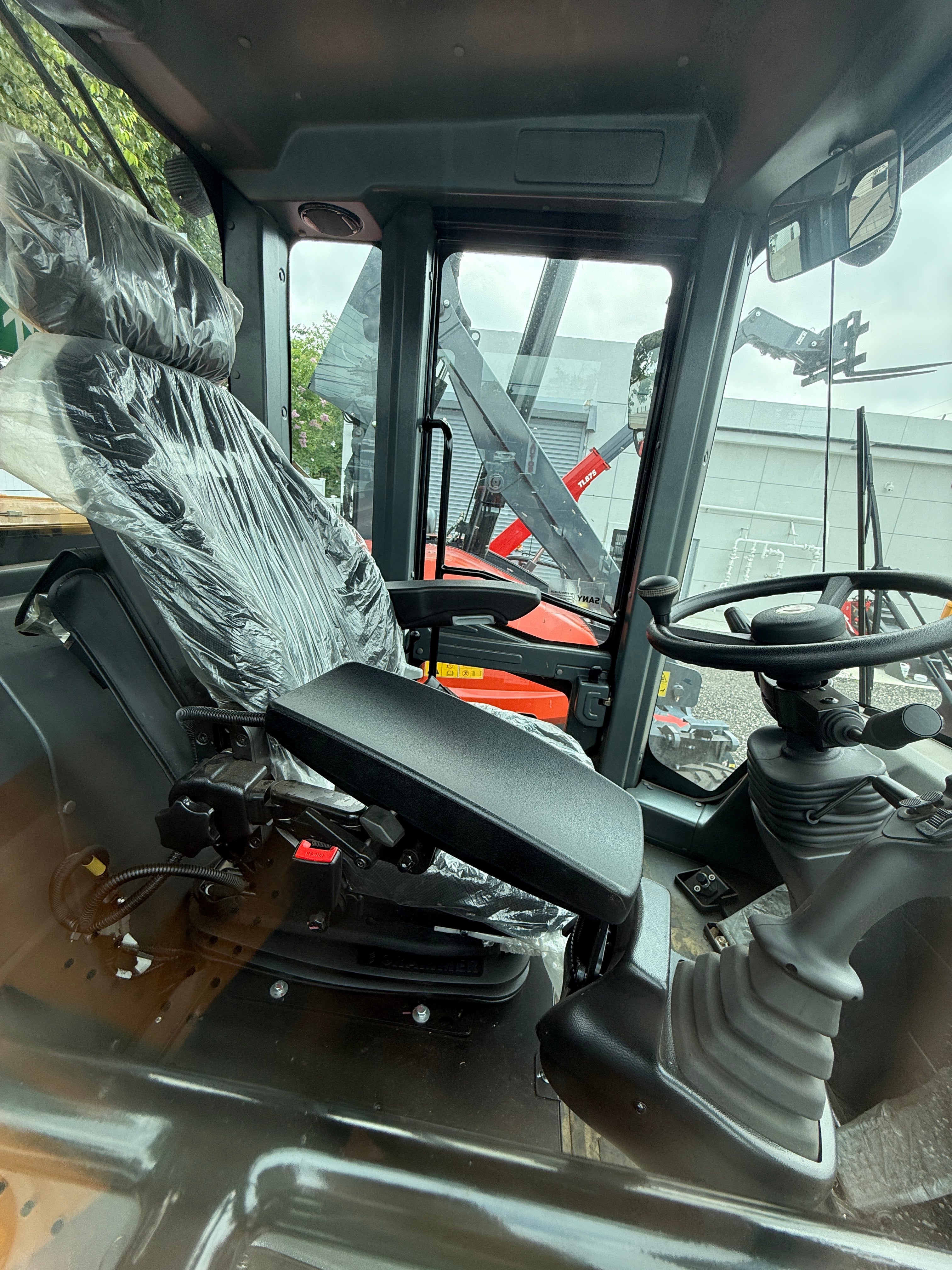

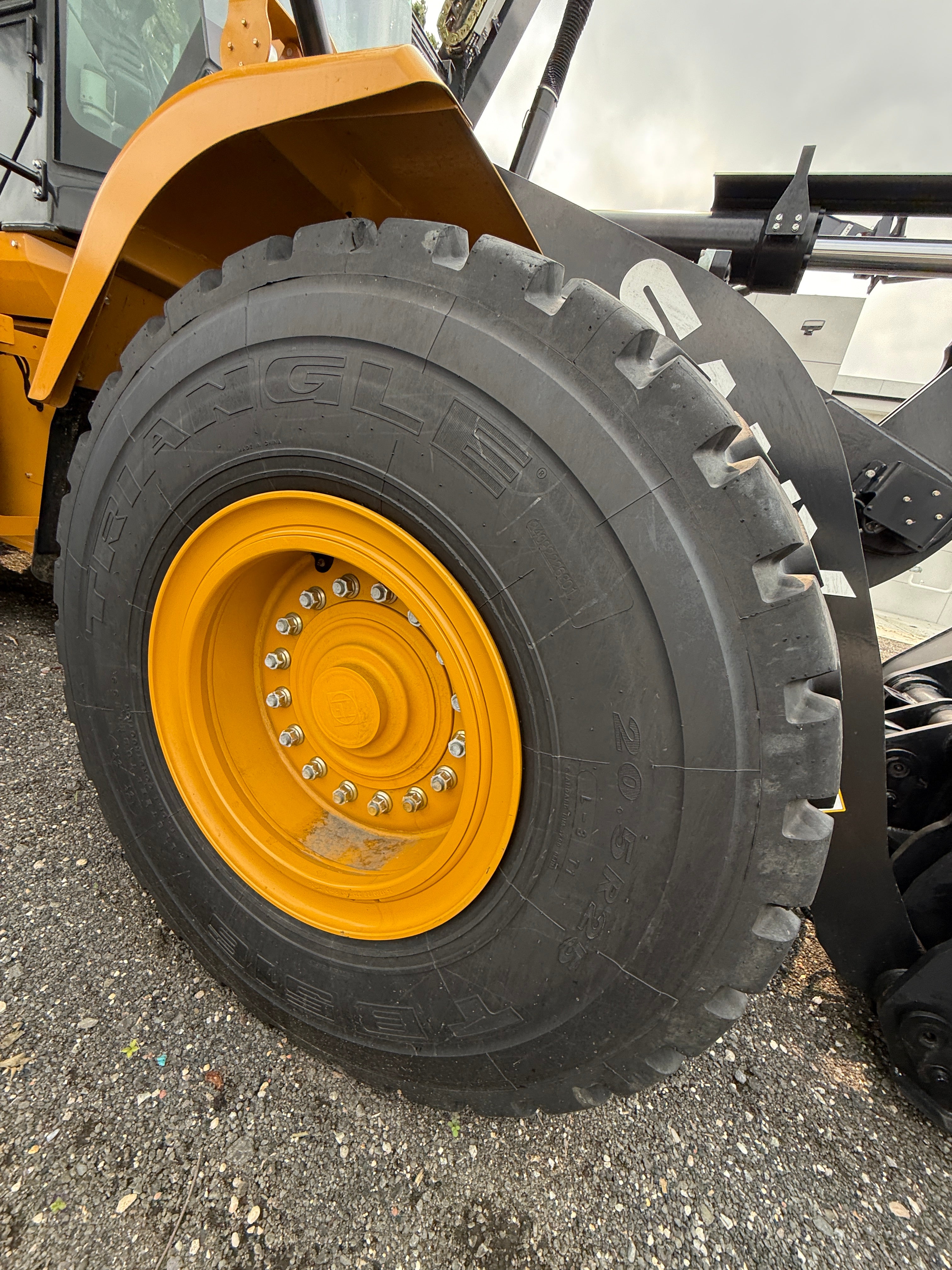

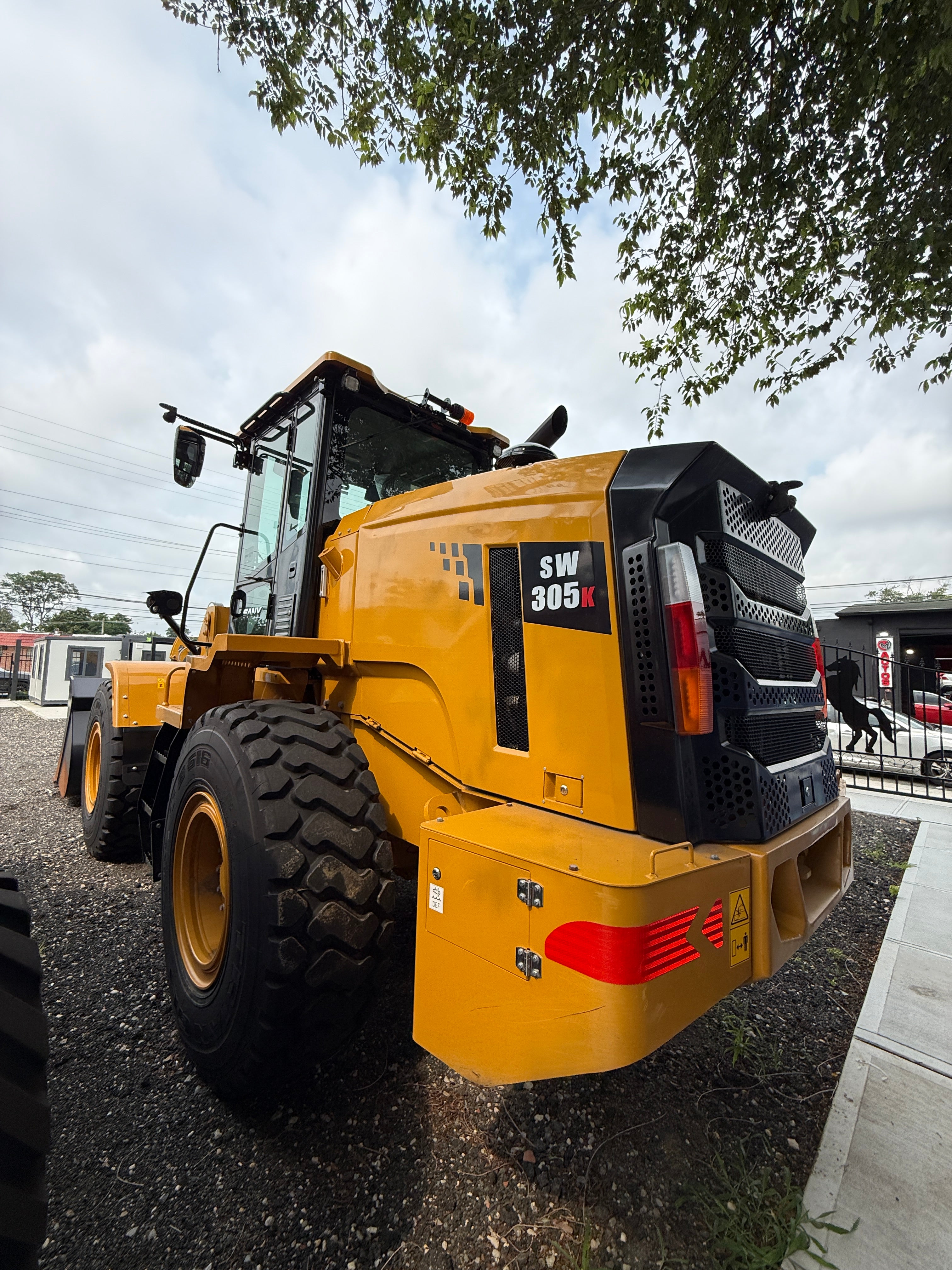

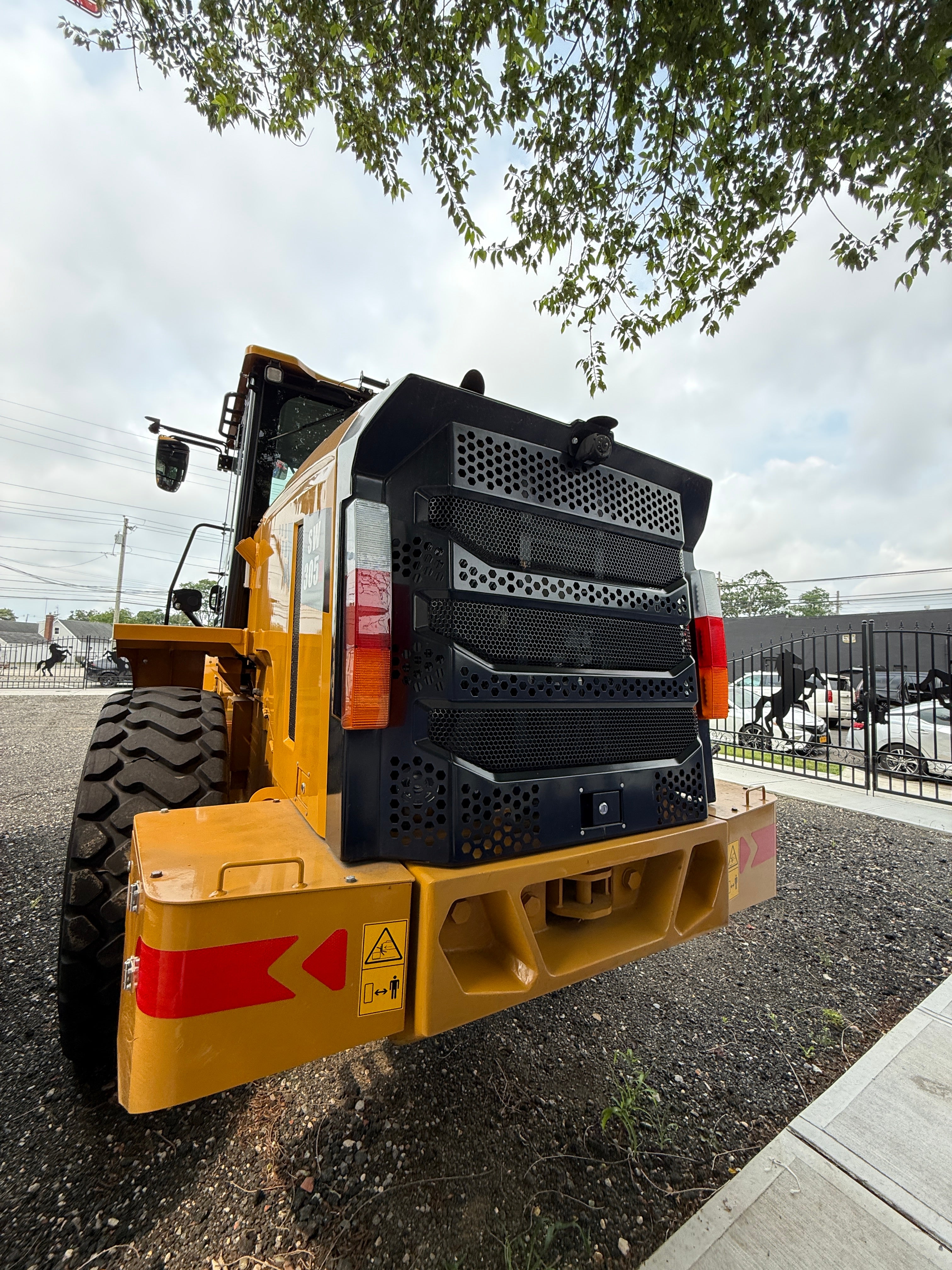

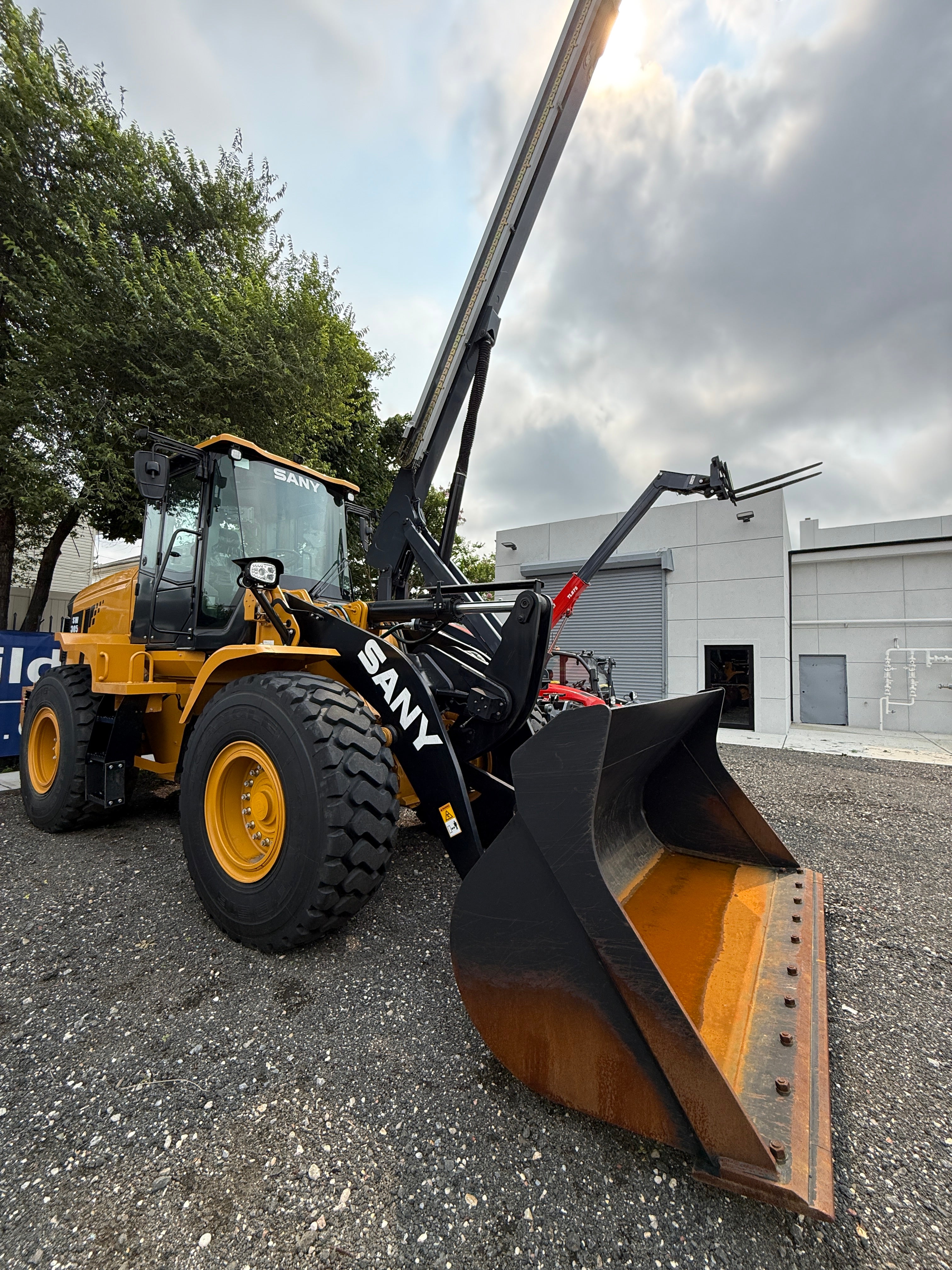

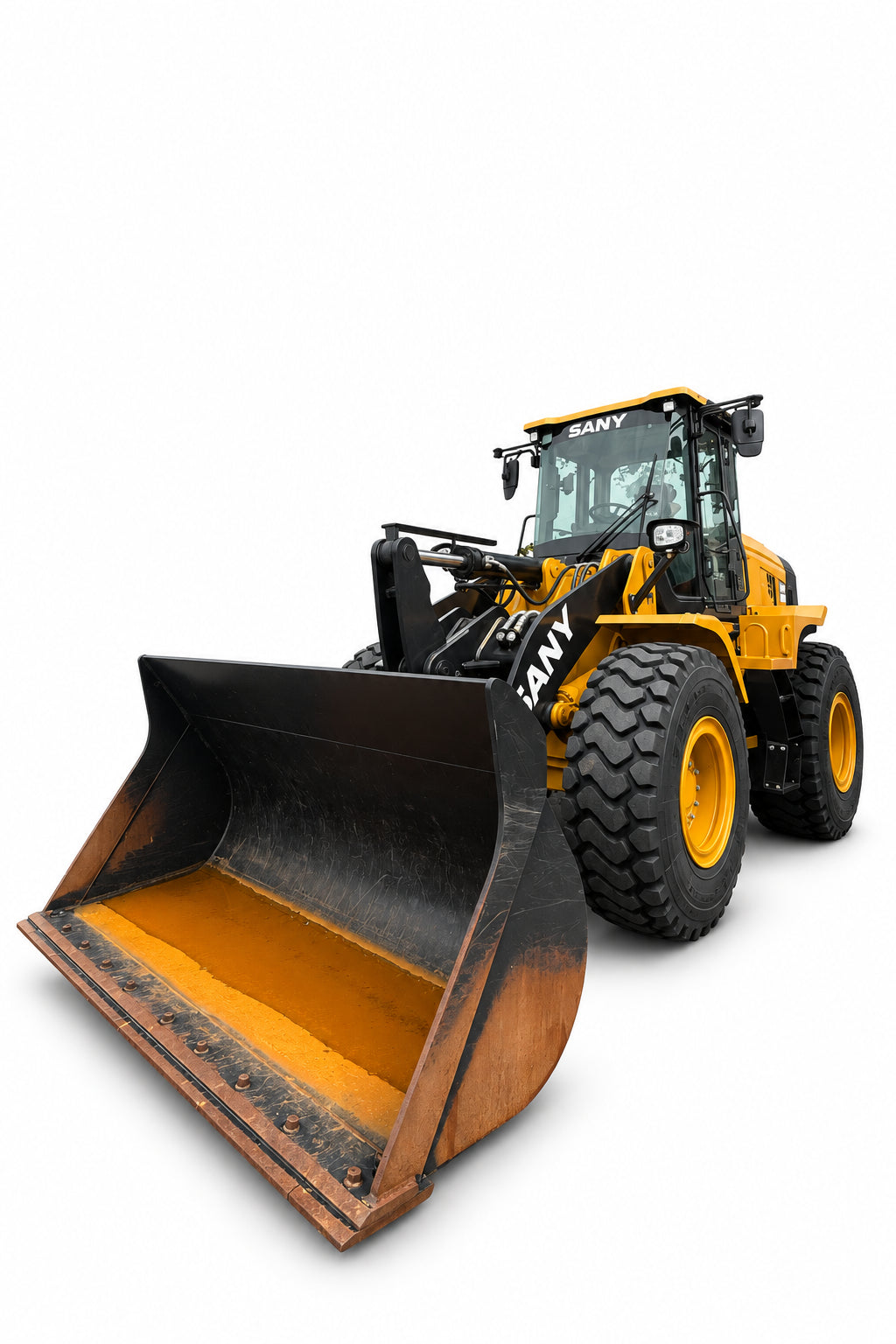

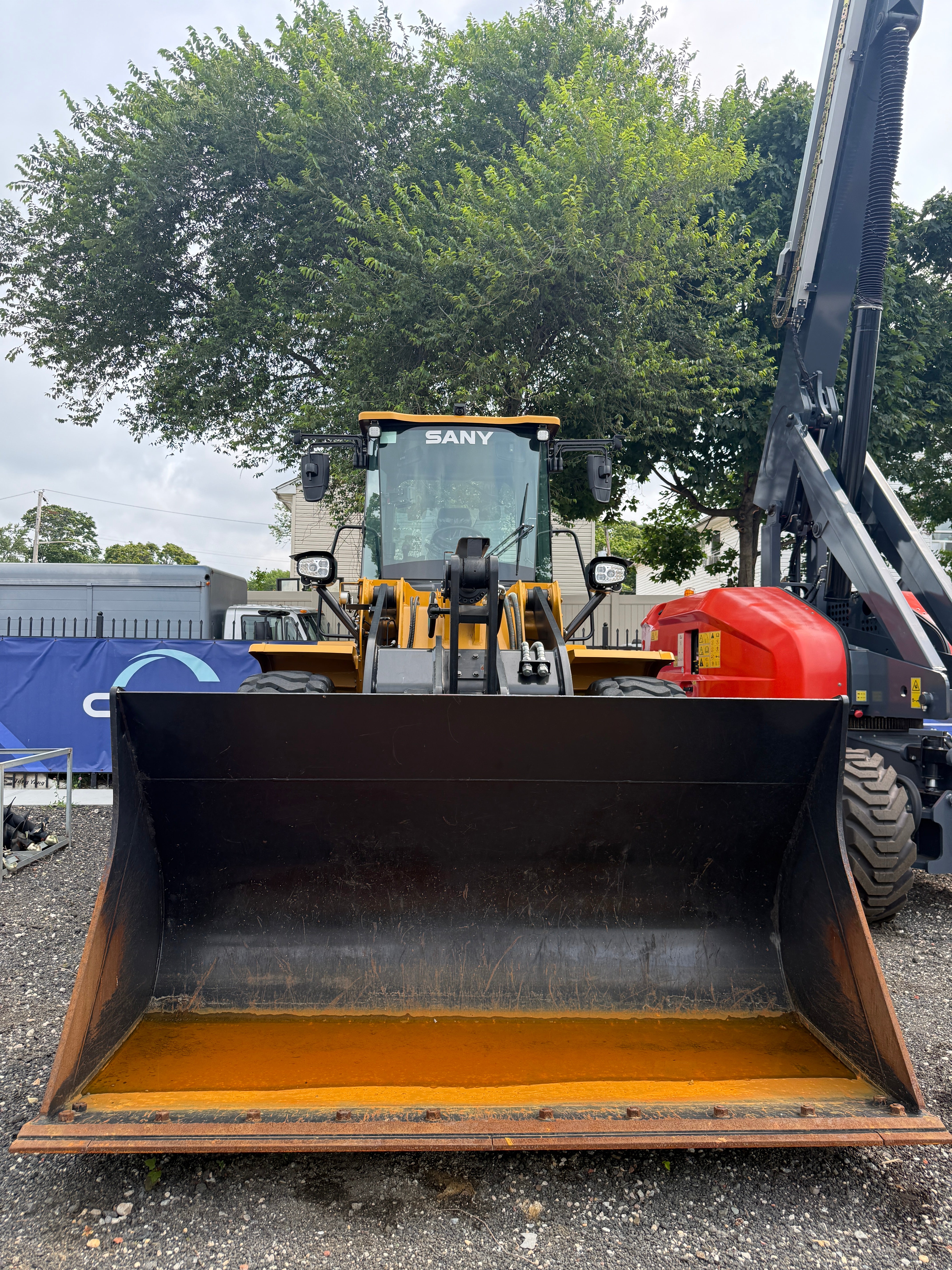

Unused SANY SW305K Wheel Loader | 163 HP | 3.2 yd³ Bucket Capacity
This unused SANY SW305K wheel loader is a heavy-duty construction and material handling machine designed for aggregate yards, construction sites, industrial facilities, landscaping, loading operations, and general earthmoving applications. Powered by a Deutz TCD6.1 diesel engine and rated at approximately 163 net horsepower, the SW305K combines strong breakout force, a large-capacity bucket, articulated steering, and a durable powertrain for demanding loading and material handling operations.
Complete Specifications
| Parameter | Details |
|---|---|
| Brand | SANY |
| Model | SW305K |
| Condition | Unused |

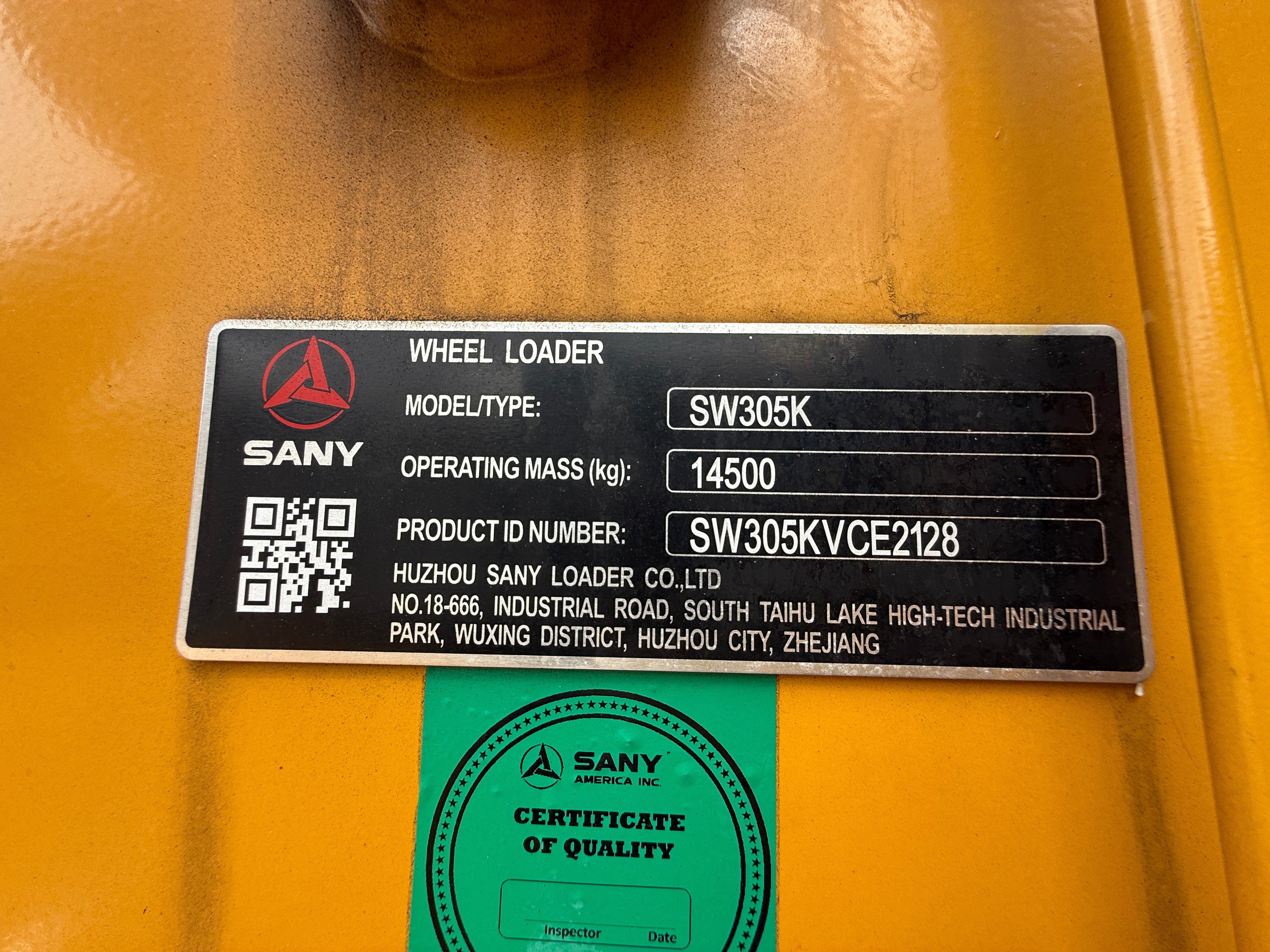

| Serial Number | SW305KVCE2128 |
| Equipment Type | Wheel Loader |
| Engine Model | Deutz TCD6.1 |
| Power Type | Diesel |
| Net Engine Power | Approx. 163 hp |
| Maximum Gross Power | Approx. 181 hp |

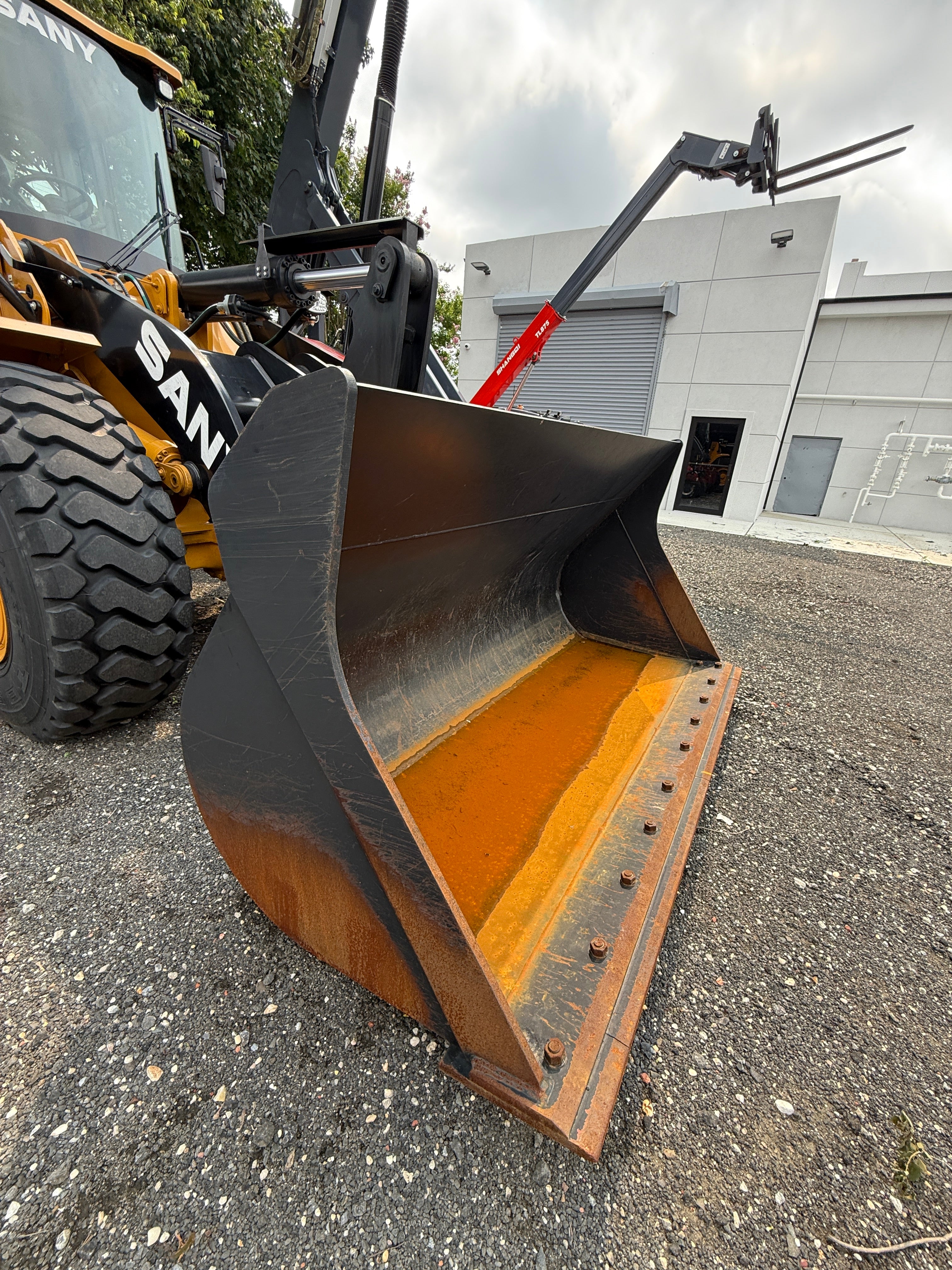

| Bucket Capacity | Approx. 3.2 yd³ |
| Breakout Force | Approx. 27,652 lbf |
| Straight Tipping Load | Approx. 19,619 lbs |
| Full-Turn Tipping Load | Approx. 17,006 lbs |
| Operating Weight | Approx. 31,967 lbs (14,500 kg) |
| Transmission | Automatic / Manual / Kick Down |
| Drive System | 4-Wheel Drive |
| Front Axle | Fixed with manual differential lock |
| Rear Axle | Oscillating axle |
| Service Brakes | Wet Disc |
| Parking Brake | Disc Brake |
| Articulation Angle | Approx. ±40° |
| Dump Clearance at Maximum Lift | Approx. 8 ft 10 in (2,689 mm) |
| Reach at Maximum Lift / 45° Dump | Approx. 3 ft 5 in (1,038 mm) |
| Hinge Pin Height at Maximum Lift | Approx. 12 ft 7 in (3,845 mm) |
| Shipping Length with Bucket | Approx. 24 ft 8 in (7,518 mm) |
| Overall Width | Approx. 6 ft 9 in (2,045 mm), machine body; bucket width may be greater |
| Height to Top of Cab | Approx. 11 ft 2 in (3,405 mm) |
| Wheelbase | Approx. 9 ft 10 in (3,000 mm) |
| Ground Clearance | Approx. 1 ft 4 in (407 mm) |
| Fuel Tank Capacity | Approx. 60 gal |
| Hydraulic Tank Capacity | Approx. 34 gal |
| Operating Hours | Verify meter reading |
| Bucket / Attachment | Verify actual unit configuration and included attachment |
General Operation Requirements & Guidelines
• Requires trained and authorized wheel loader operators for safe operation
• Follow manufacturer instructions and applicable workplace safety procedures
• Inspect bucket, linkage, hydraulic cylinders, hoses, tires, brakes, steering, and safety systems before operation
• Check diesel fuel, engine oil, coolant, hydraulic fluid, transmission fluid, and DEF before use
• Verify bucket or attachment is securely connected before operation
• Do not exceed rated tipping loads, bucket capacity, or operating limits
• Keep personnel clear of raised buckets and articulated machine areas
• Use additional caution when operating on slopes, uneven terrain, or loose surfaces
• Lower the bucket or attachment before parking or leaving the operator station
• Operate only on suitable and stable ground conditions
⚠️ CRITICAL AUCTION TERMS
NO WARRANTY • NO AFTER-SALES SUPPORT • ALL SALES FINAL
All specifications, dimensions, capacities, operating hours, and features listed above are general descriptions only; the actual product may have differences depending on its configuration. Although this equipment is listed as unused, storage, handling, transportation, weather exposure, or long-term inactivity may result in cosmetic marks, surface corrosion, fluid seepage, battery deterioration, tire aging, or other condition differences. Buyers should conduct an on-site inspection and verify the engine, bucket, hydraulic system, transmission, tires, controls, safety equipment, operating hours, attachments, and overall operating functionality before bidding.
For more information about this equipment, please call us for consultation.
Auction Additional Terms
This is a consignment auction item. Our platform acts only as an auction facilitator. Buyer is responsible for all loading, transportation, and unloading of the equipment upon purchase. All listed pricing is for the product only; applicable buyer’s premium will be added to the final sale price.
