SANY SY35U Compact Excavator | Yanmar Engine | Zero Tail Swing

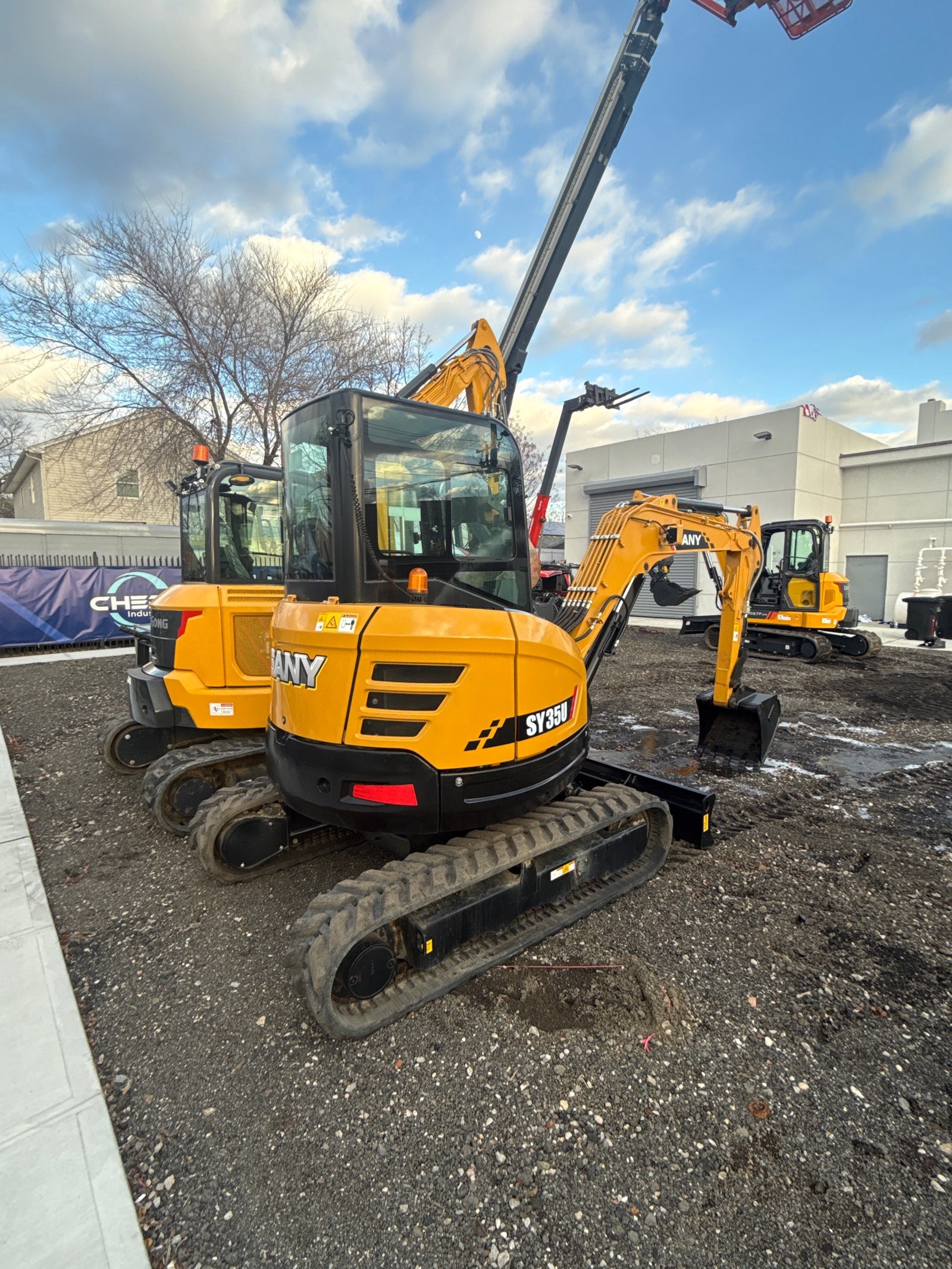

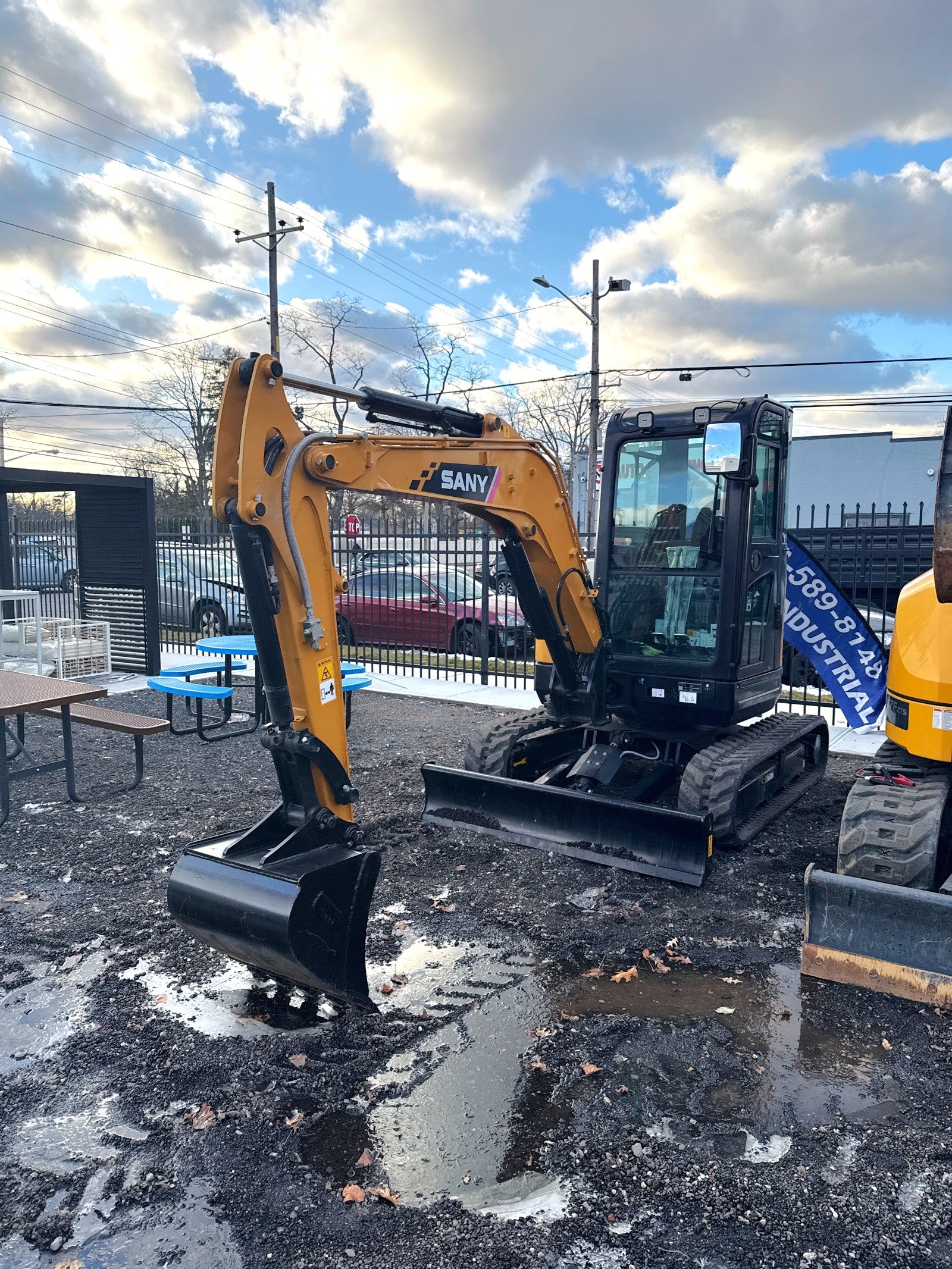

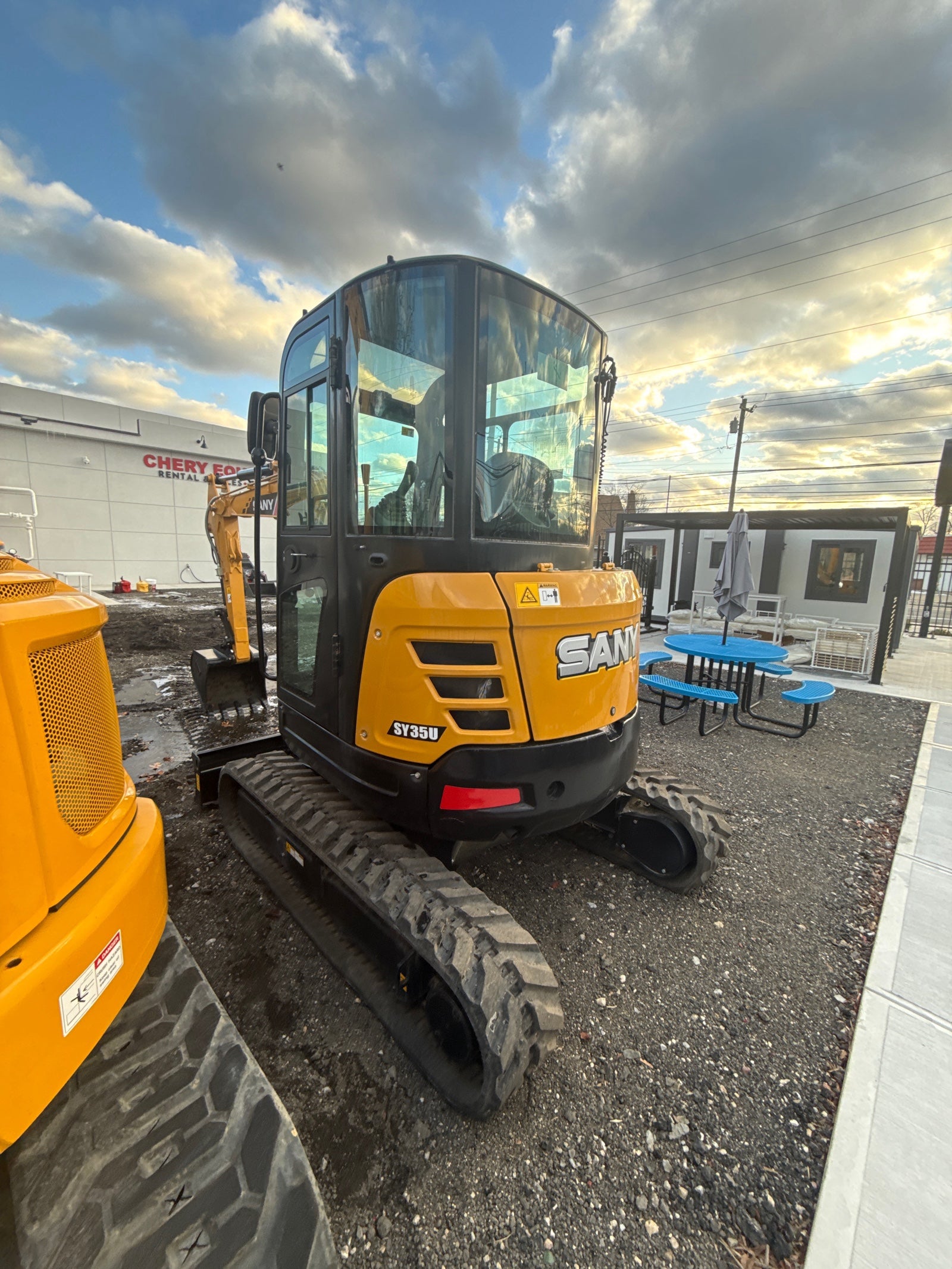

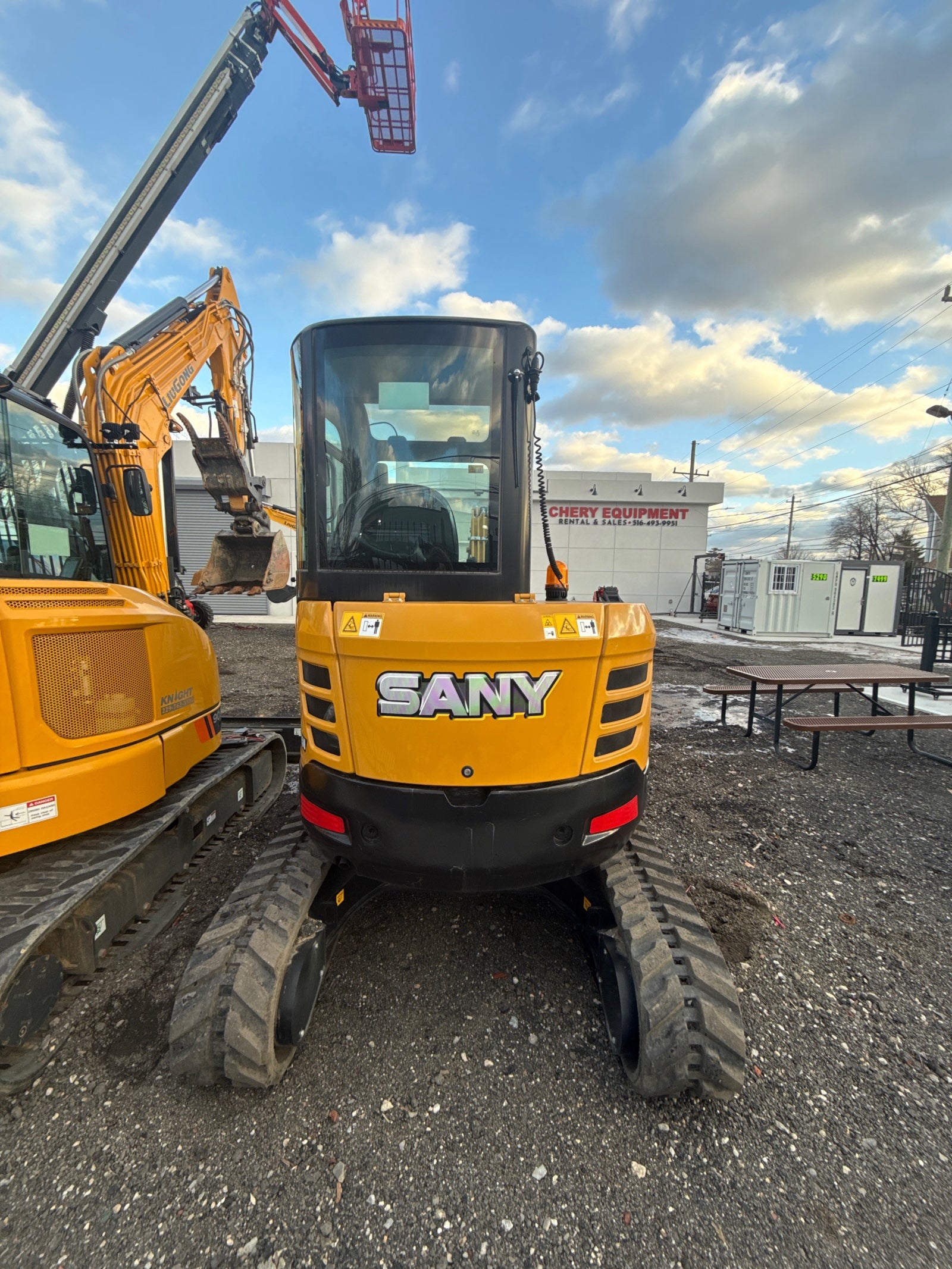

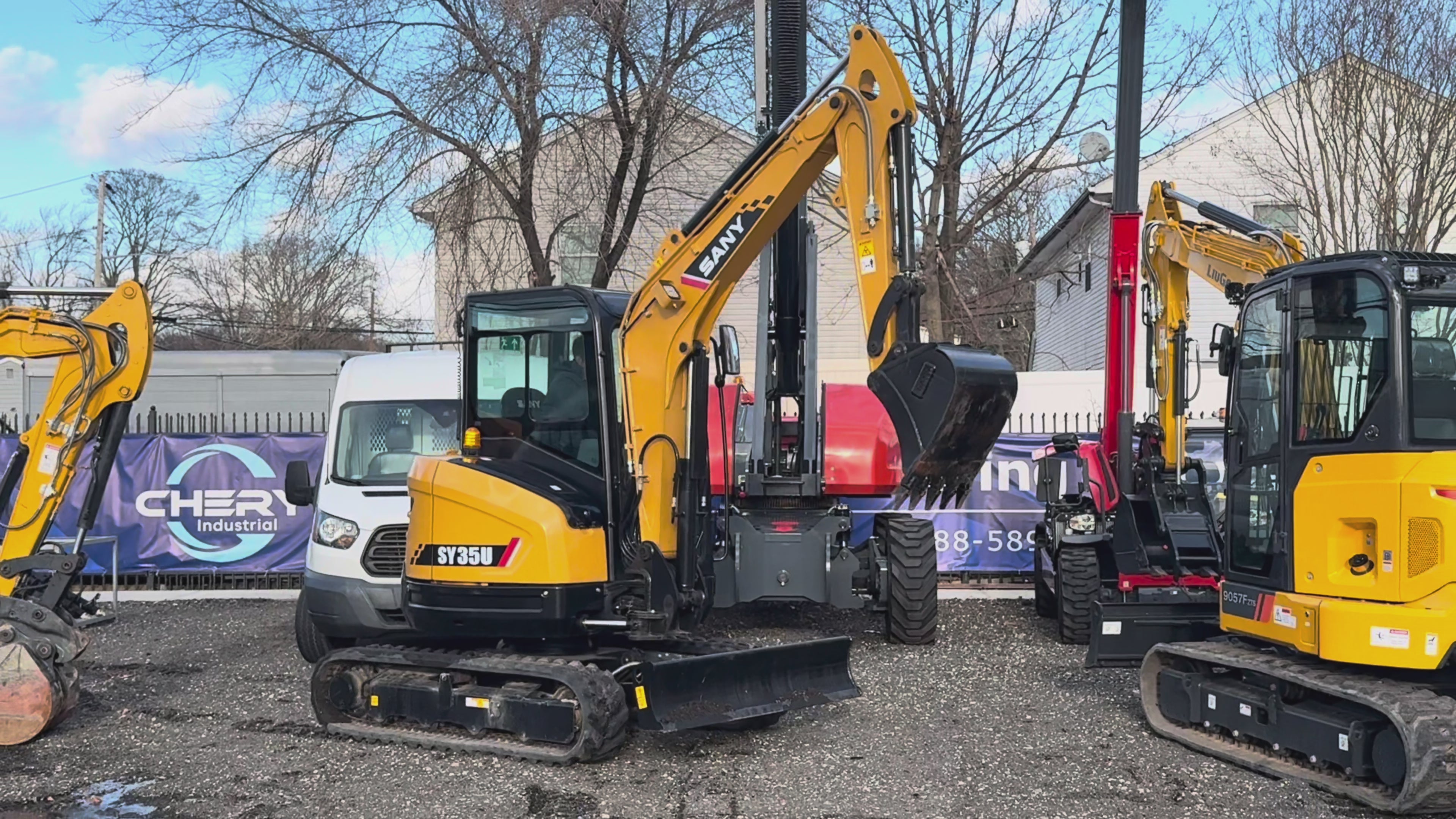

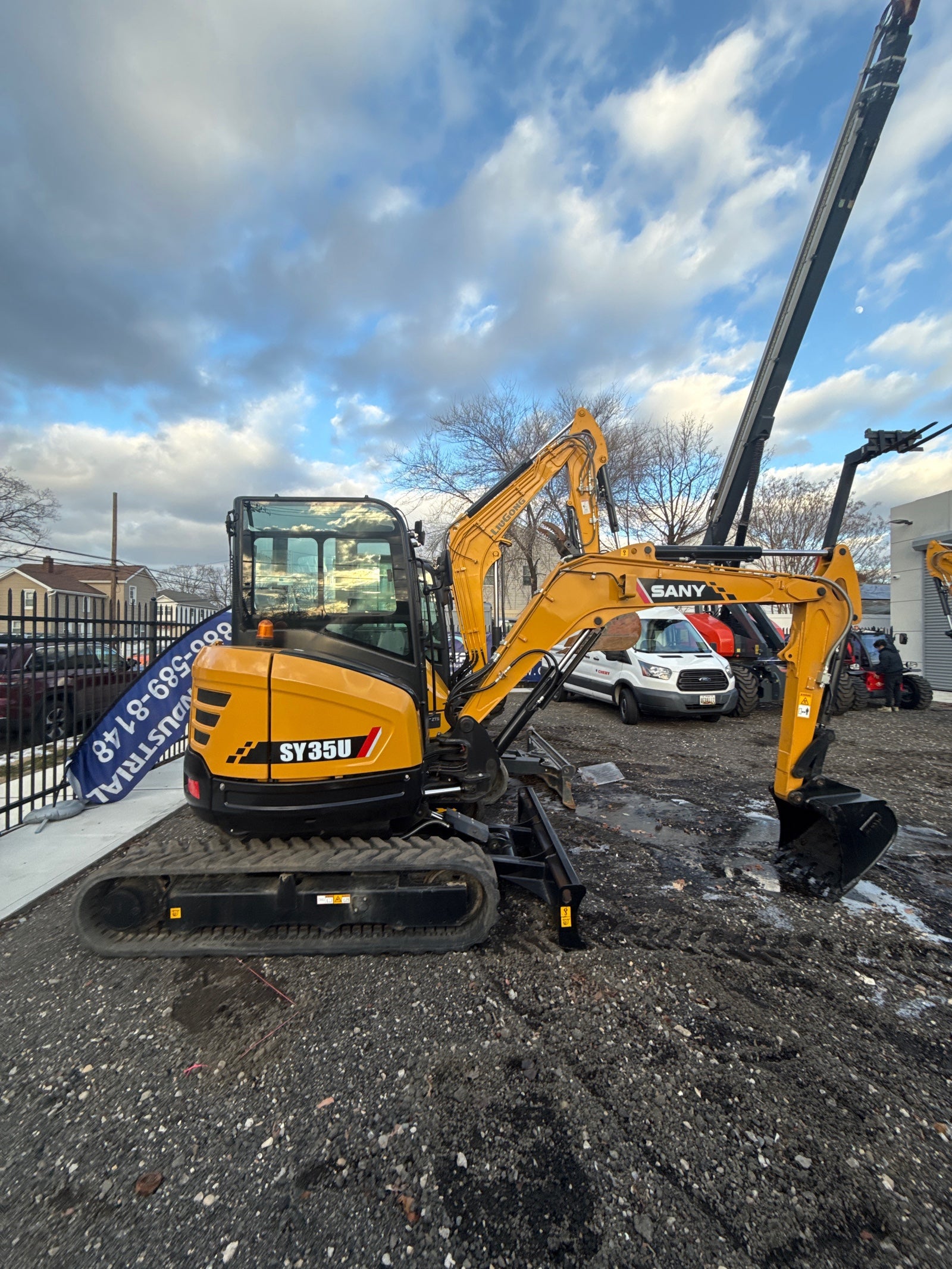

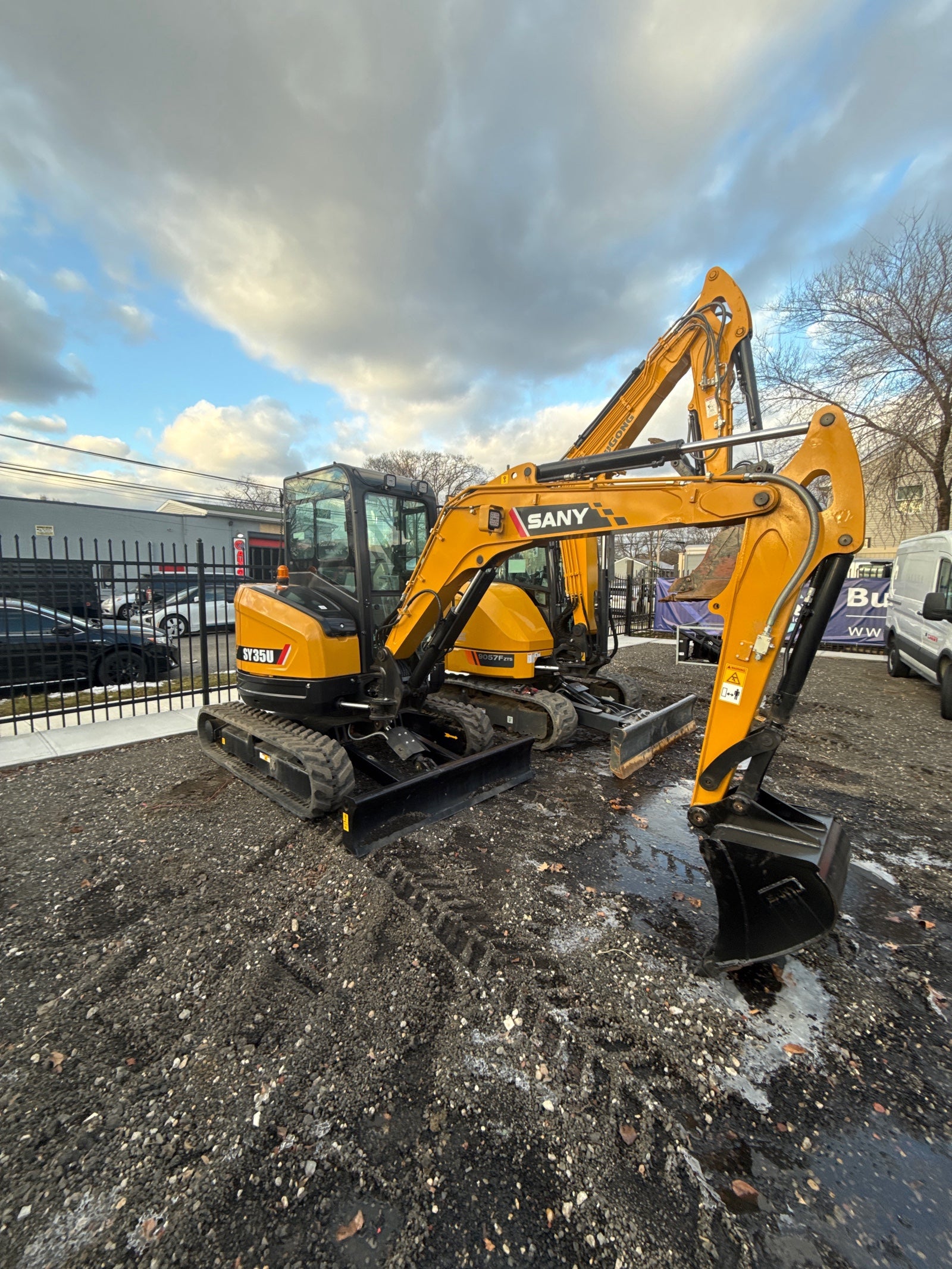

This unused SANY SY35U compact excavator is a high-maneuverability work machine powered by a Yanmar 3TNV88 diesel engine, featuring zero tail swing design for tight jobsite operations. Equipped with premium hydraulics, rubber tracks, and pilot controls, it’s ideal for landscaping, utility work, small-scale construction, and residential excavation—delivering reliable performance and versatile functionality for narrow-access work areas.
Complete Specifications
| Parameter | Details |
|---|---|
| Model | SANY SY35U (Cab/Canopy Configuration) |
| Condition | Unused / Like-New |
| Engine | Yanmar 3TNV88 Diesel |
| Net Power | 23.3 HP |
| Operating Weight | Cab: 8,499 lb | Canopy: 8,367 lb |
| Max Hydraulic Operating Flow | 23.2 gal/min |
| Max Hydraulic Operating Pressure | 3,553 psi |
| Travel Speed (Max) | Low: 1.5 mph | High: 2.7 mph (2-speed selection) |
| Max Swing Speed | 9 RPM |
| Fuel Tank Capacity | 10.6 gal |
| Transport Dimensions (L×W×H) | 16' 2" × 5' 8" × 8' 3" |

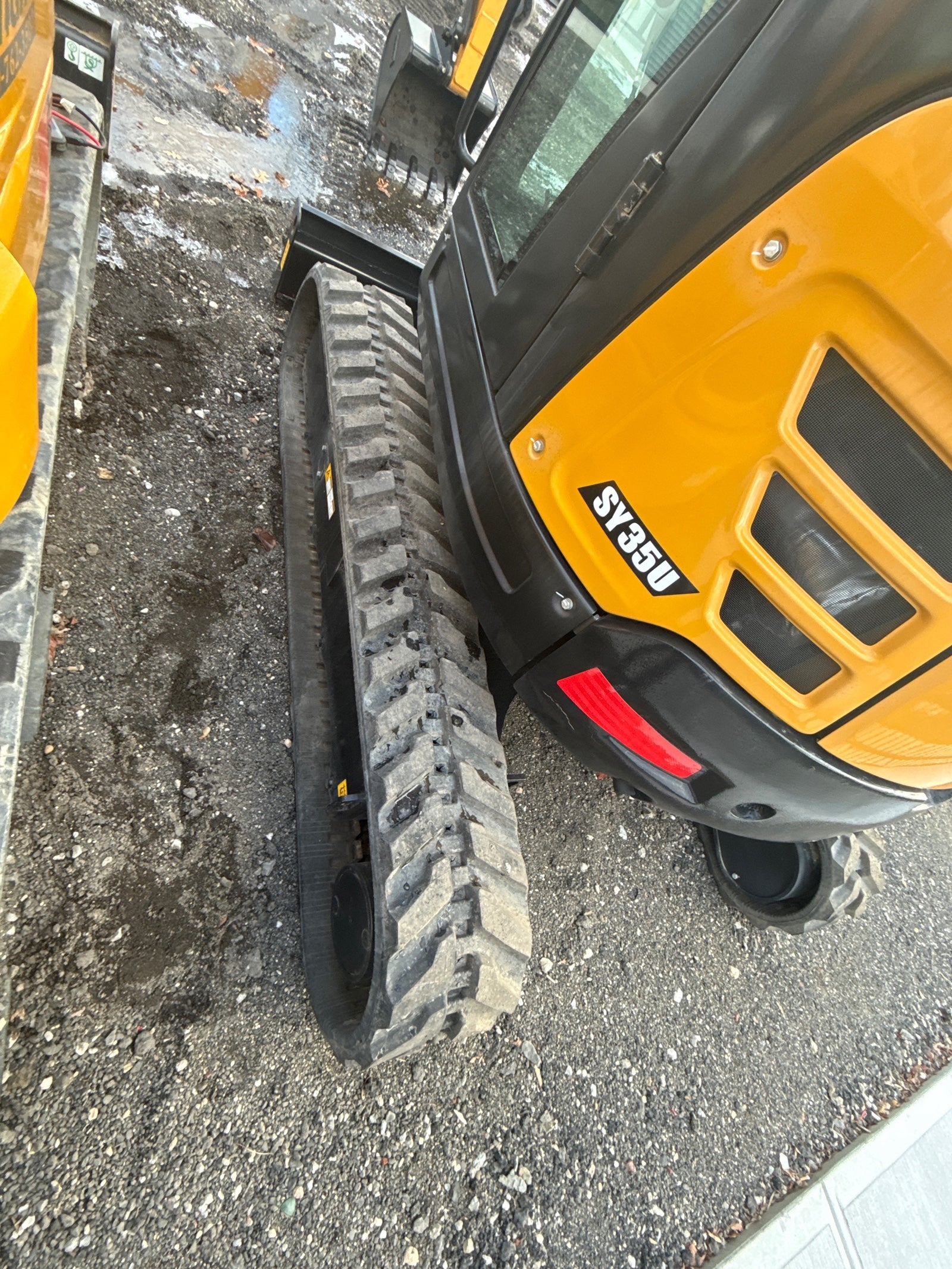

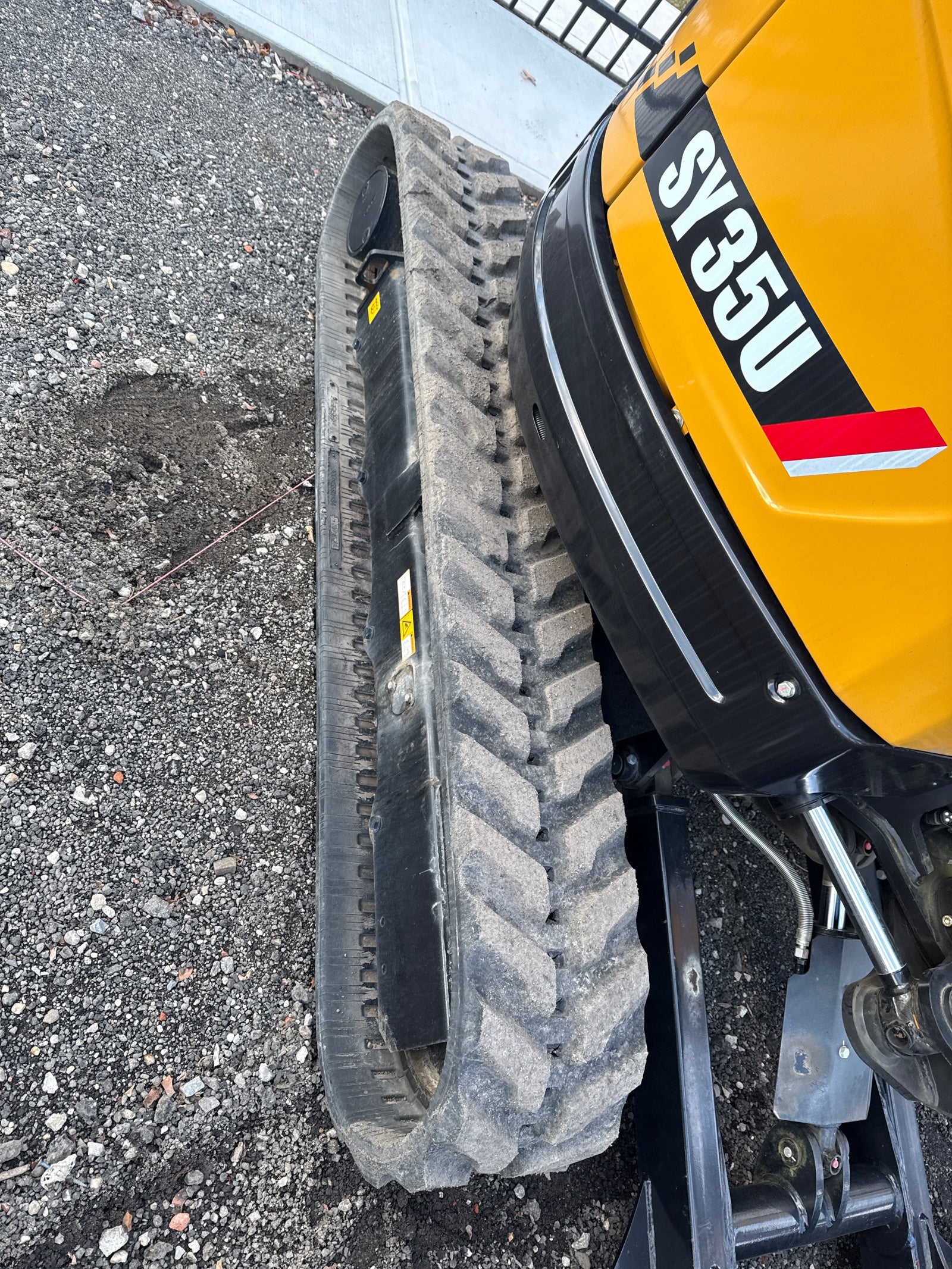

| Undercarriage / Track Specs | 12" belted rubber tracks (standard) | Upper Structure Width: 5' 1" |
| Min Swing Radius | 8' 1" (Zero tail swing design) |
| Max Digging Depth | 10' 2" |
| Max Digging Height | 15' 11" |
| Max Dumping Height | 11' 4" |
| Max Ground Level Reach | 17' 11" |
| Key Hydraulic Features | Load-sensing system | Pilot controls | 1/2-way auxiliary circuit + flow diverter |

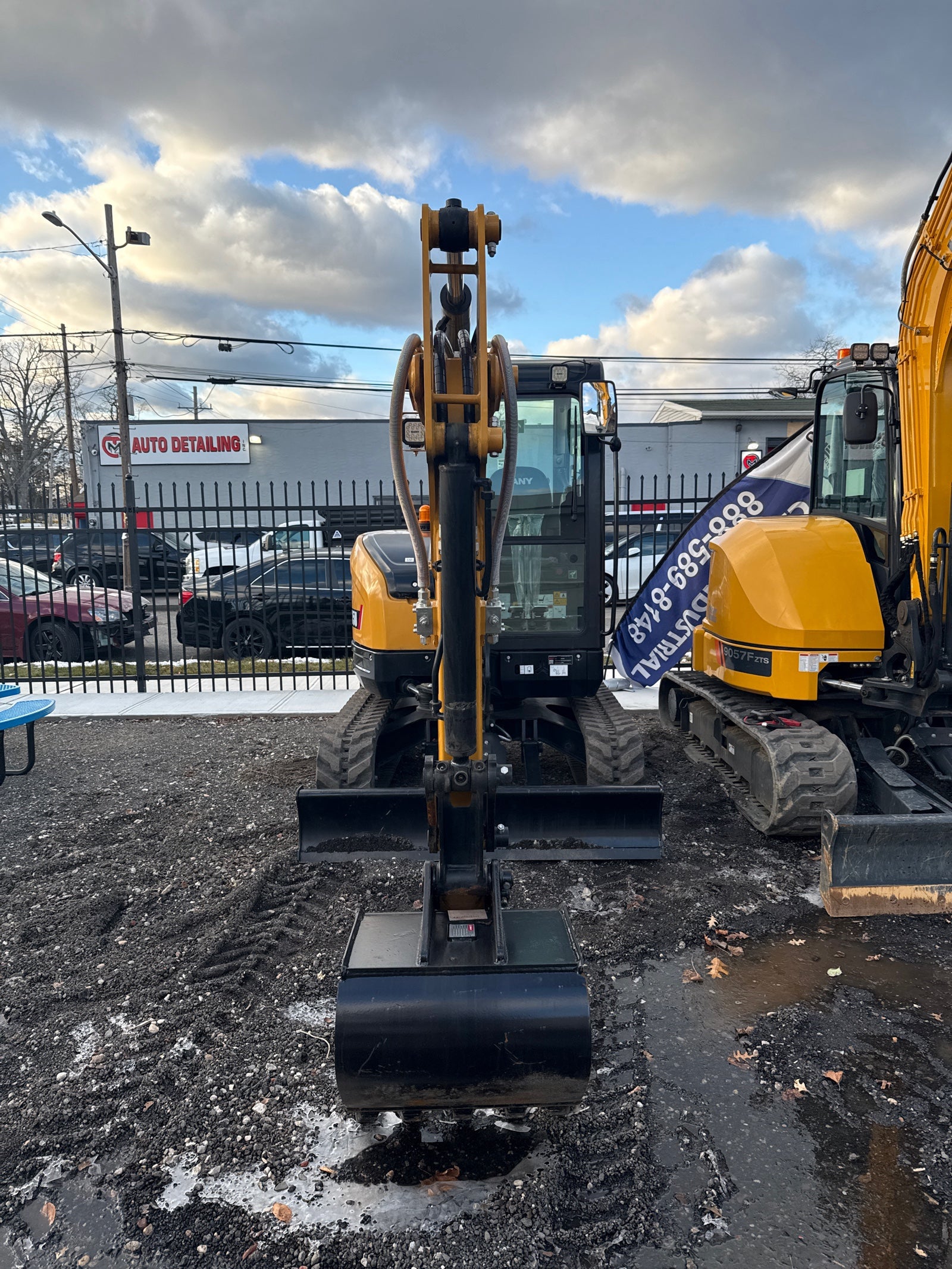

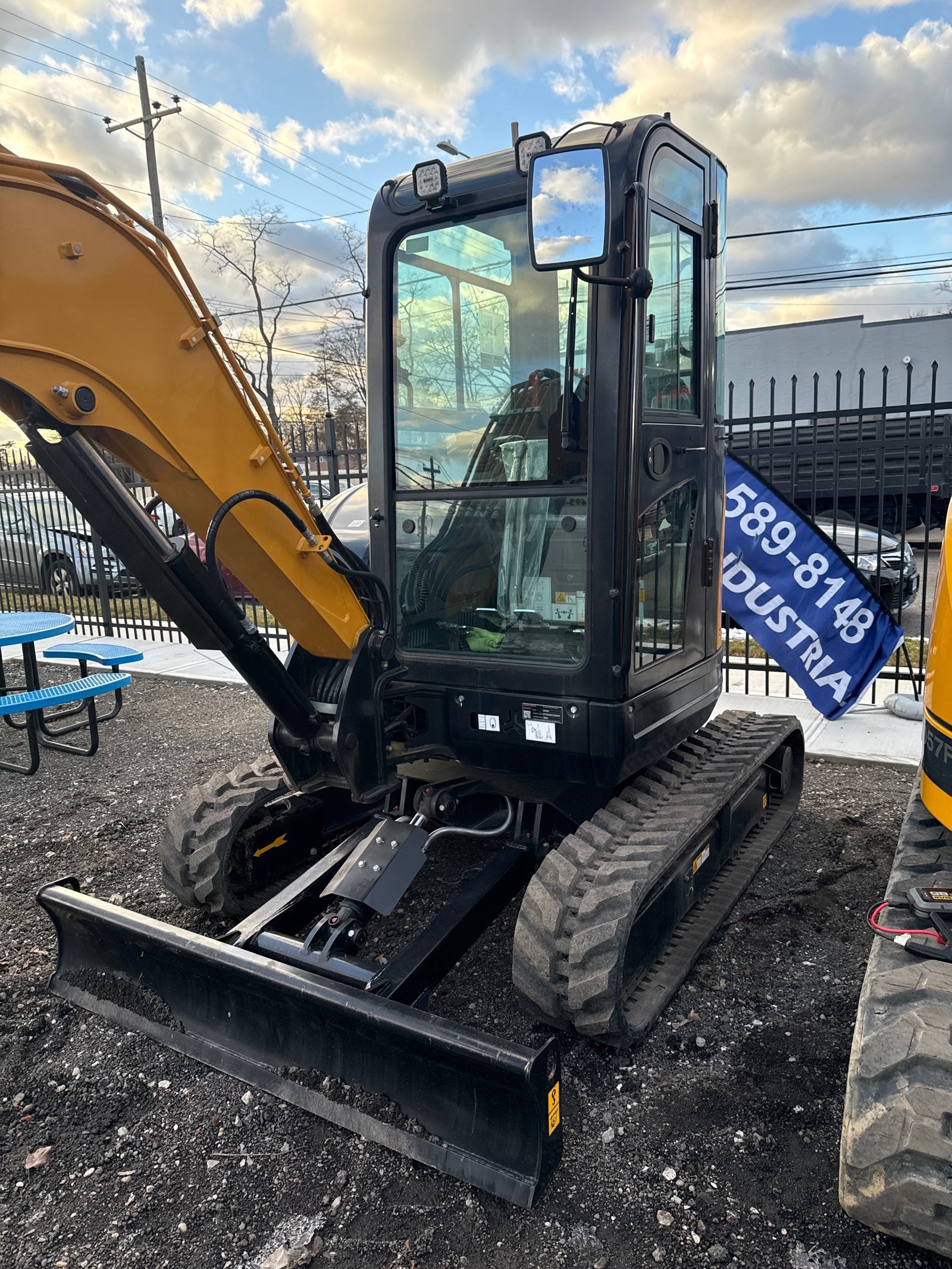

| Standard Equipment | Dozer blade | Quick coupler ready | Work lights (3) + magnetic beacon |
General Operation Requirements & Guidelines
• Requires valid heavy equipment operation certification for safe use
• Operators must follow standard compact excavator safety protocols (cab restraints, ROPS compliance)

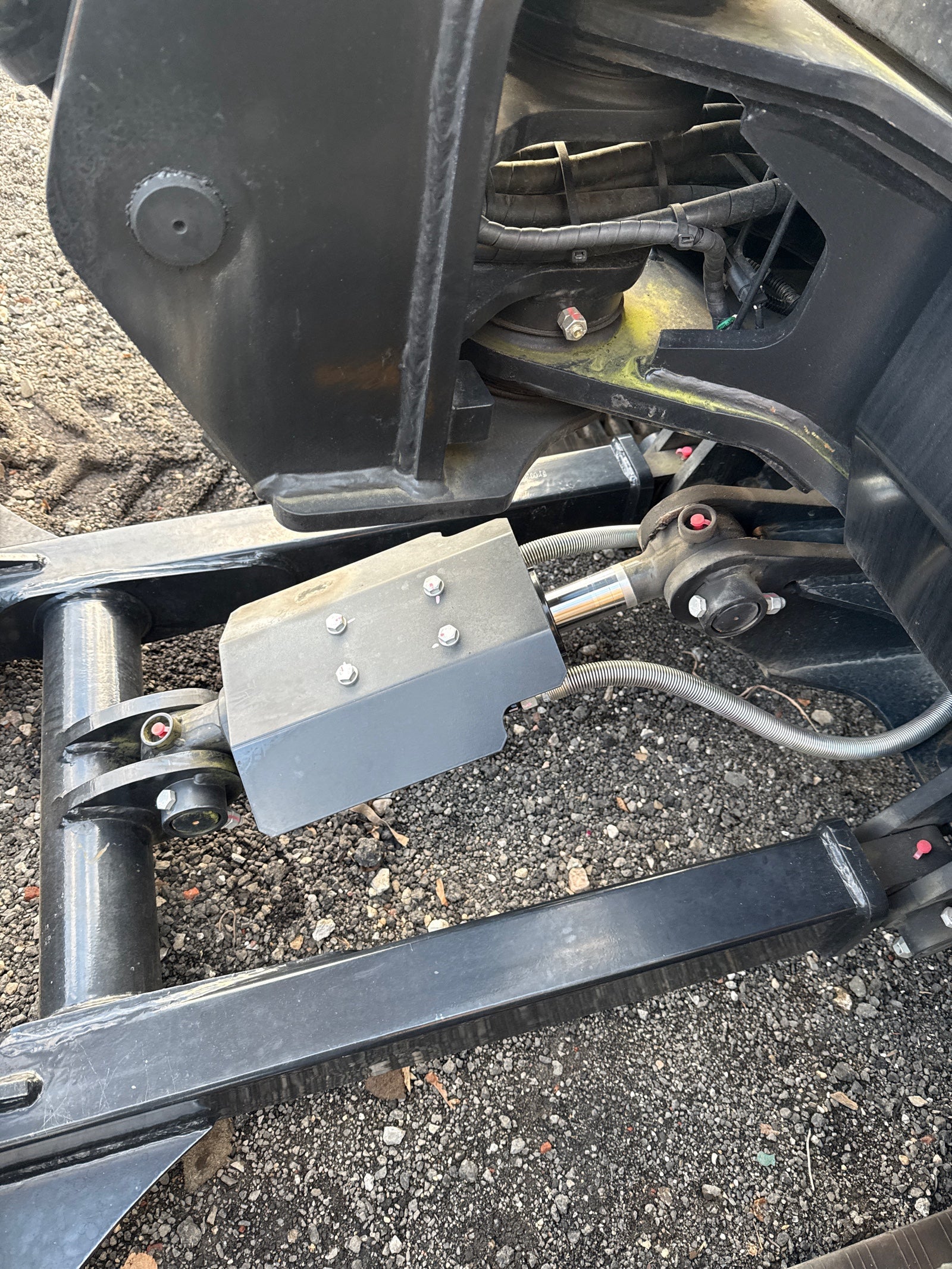

• Pre-use inspection of hydraulic lines, rubber tracks, engine, and blade is mandatory
• Zero tail swing design for tight spaces—maintain clear work area around the machine

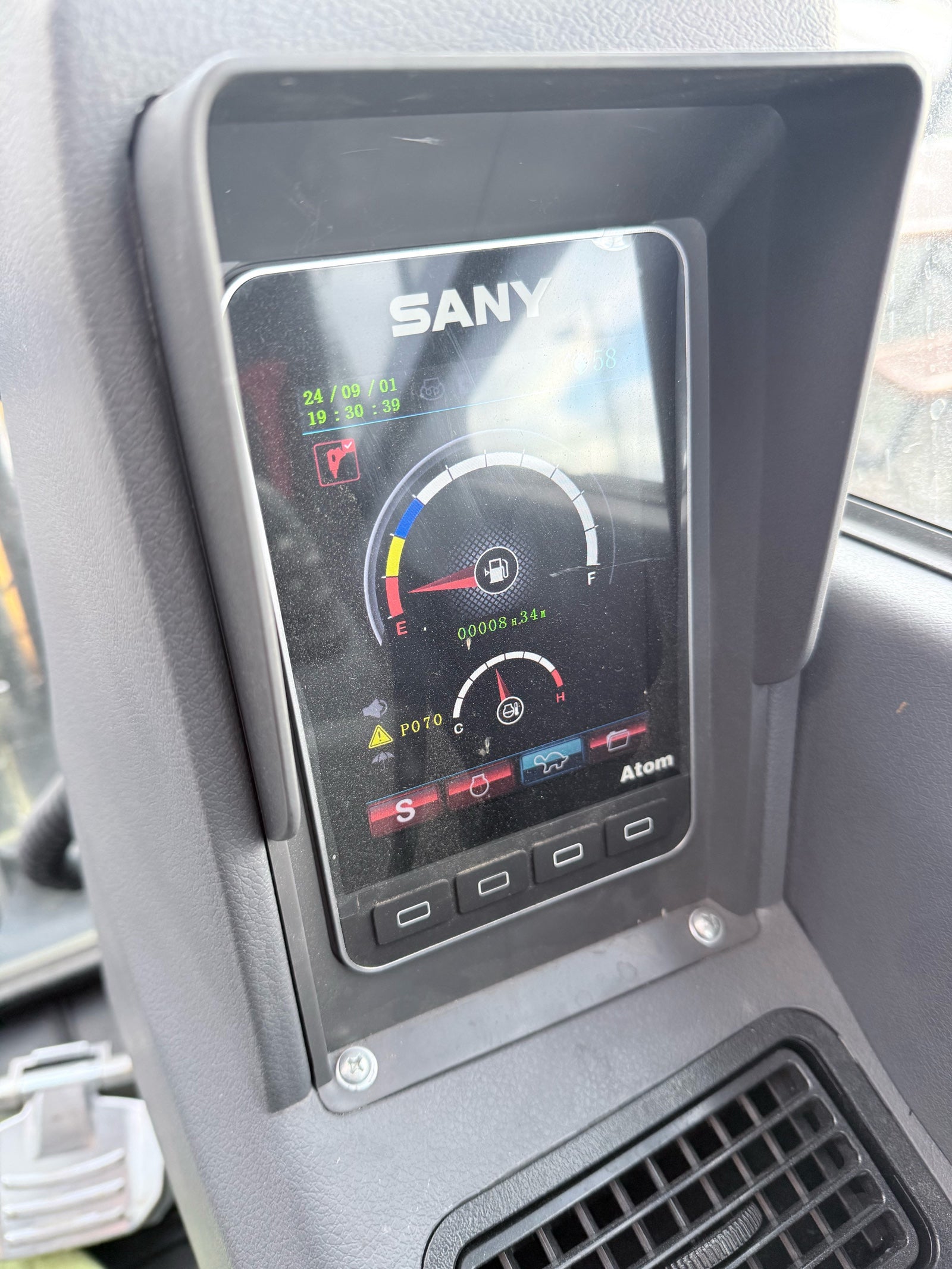

• Adjust auxiliary hydraulic flow via on-board monitor per attachment needs
• Only operate on stable ground; avoid overloading beyond manufacturer’s rated capacity
• Regular fuel/fluid checks required for optimal performance in outdoor/worksite conditions
⚠️ AUCTION TERMS & IMPORTANT NOTES
NO WARRANTY • NO AFTER-SALES SUPPORT • ALL SALES FINAL
All specifications, dimensions, and features listed above are general descriptions for this model only. Actual product may have minor differences due to manufacturing or configuration. Please conduct an on-site inspection in person before bidding.
For more detailed information about this excavator, auction procedures, or inspection scheduling, please call us for consultation.
Auction Additional Terms
This is a consignment auction item. Our platform acts only as an auction facilitator. The buyer is solely responsible for all loading, transportation, and unloading of the equipment upon purchase. All listed pricing is for the product only; a 12% buyer’s premium will be applied to the final sale price. Payment and pickup must be completed within the specified auction timeline.
