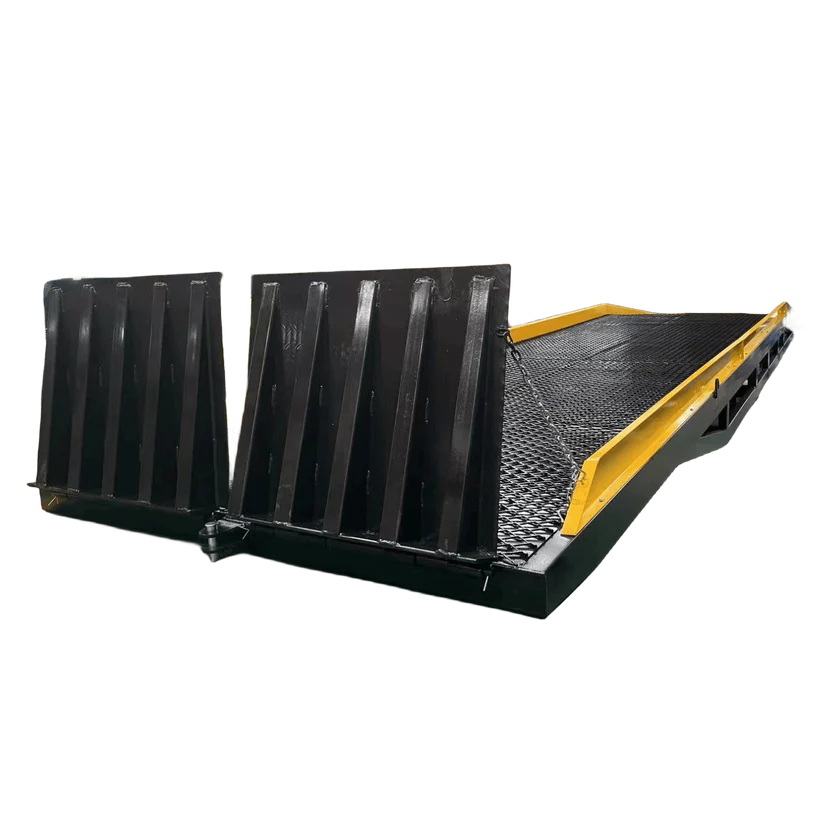

Portable Loading Dock Ramp / Yard Ramp - 22,000 LB Capacity
This heavy-duty portable loading dock ramp (yard ramp) is engineered to handle heavier loads with a 22,000 lb capacity, ideal for safe and efficient loading/unloading of heavy trucks, trailers, and shipping containers without a permanent dock. Built with reinforced steel construction, it is perfect for industrial yards, warehouses, and construction sites with high-load material handling needs.
| Specification | Details |
|---|---|
| Maximum Load Capacity | 22,000 Pounds (9,979 kg) - Dynamic & Static Load Certified |
| Overall Dimensions | Length: 30ft (9.14m) | Width: 8ft (2.44m) | Adjustable Height: 36" - 60" (91cm - 152cm) |
| Main Construction Material | 8GA/10GA Reinforced Carbon Steel with Anti-Corrosive Paint Coating |
| Surface Design | Heavy-Duty Serrated Steel Grating (Non-Slip) - For Wet/Oily Conditions |
| Mobility Features | 12" Heavy-Duty Pneumatic Wheels + Reinforced Tow Bar for Easy Relocation |
| Height Adjustment | Manual Hydraulic Hand Pump with Dual Safety Lock Pins |
| Safety Features | 8" High Reinforced Side Curbs, Safety Chains, Hydraulic Lock Valve, Anti-Tip Stabilizers |
| Ramp Self-Weight | Approx. 5,200 lbs (2,359 kg) |
| Compatibility | Heavy-Duty Forklifts, Pallet Jacks, Medium/Heavy Duty Commercial Trucks |
| Operating Temperature Range | -25°F to 125°F (-32°C to 52°C) |
This 22,000 lb capacity yard ramp is designed for heavy industrial use, eliminating the need for permanent loading docks and providing a flexible, cost-effective solution for high-load material handling in warehouses, distribution centers, and construction sites. Its reinforced design ensures durability in harsh working conditions.
IMPORTANT NOTICE: This item is being sold via auction only. NO WARRANTY, NO AFTER-SALES SERVICE, NO REFUNDS, AND NO RETURNS are provided for this product. By purchasing, you acknowledge and accept these terms.
