Description

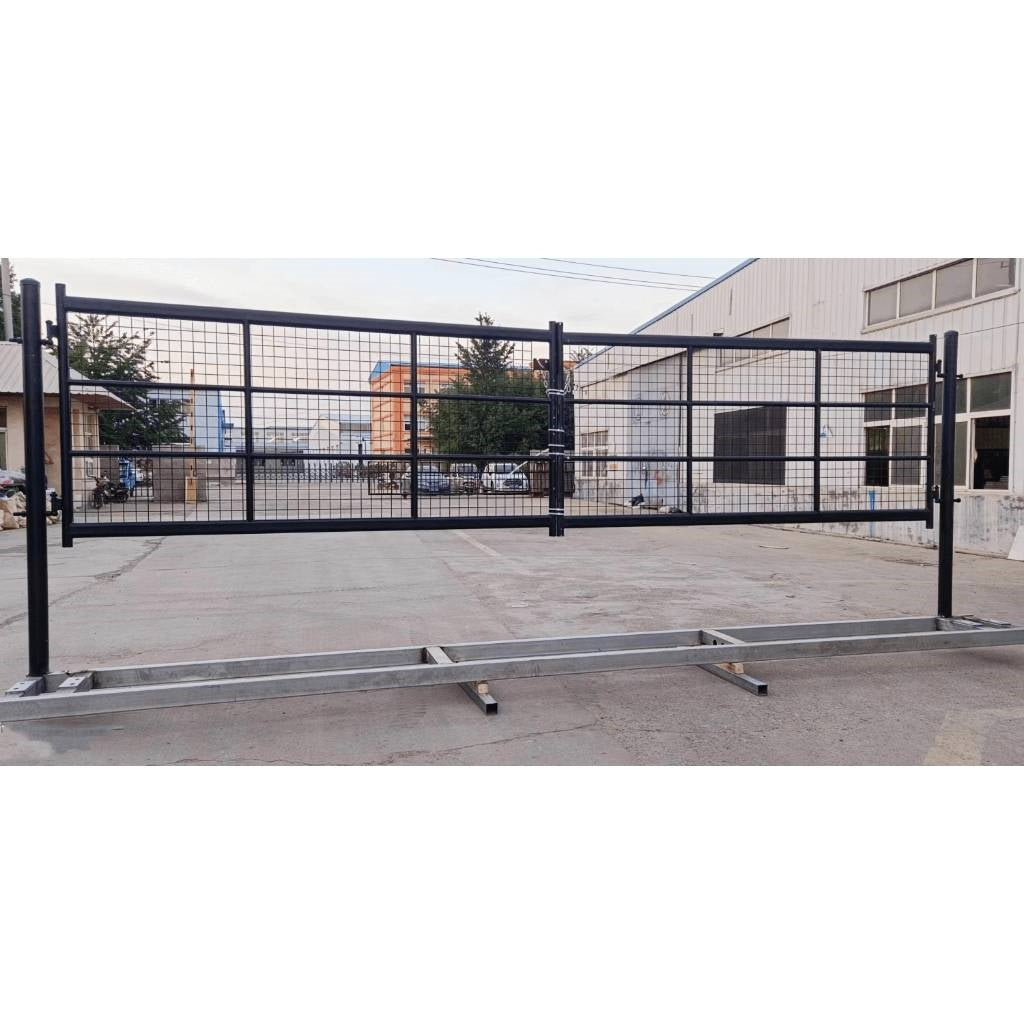

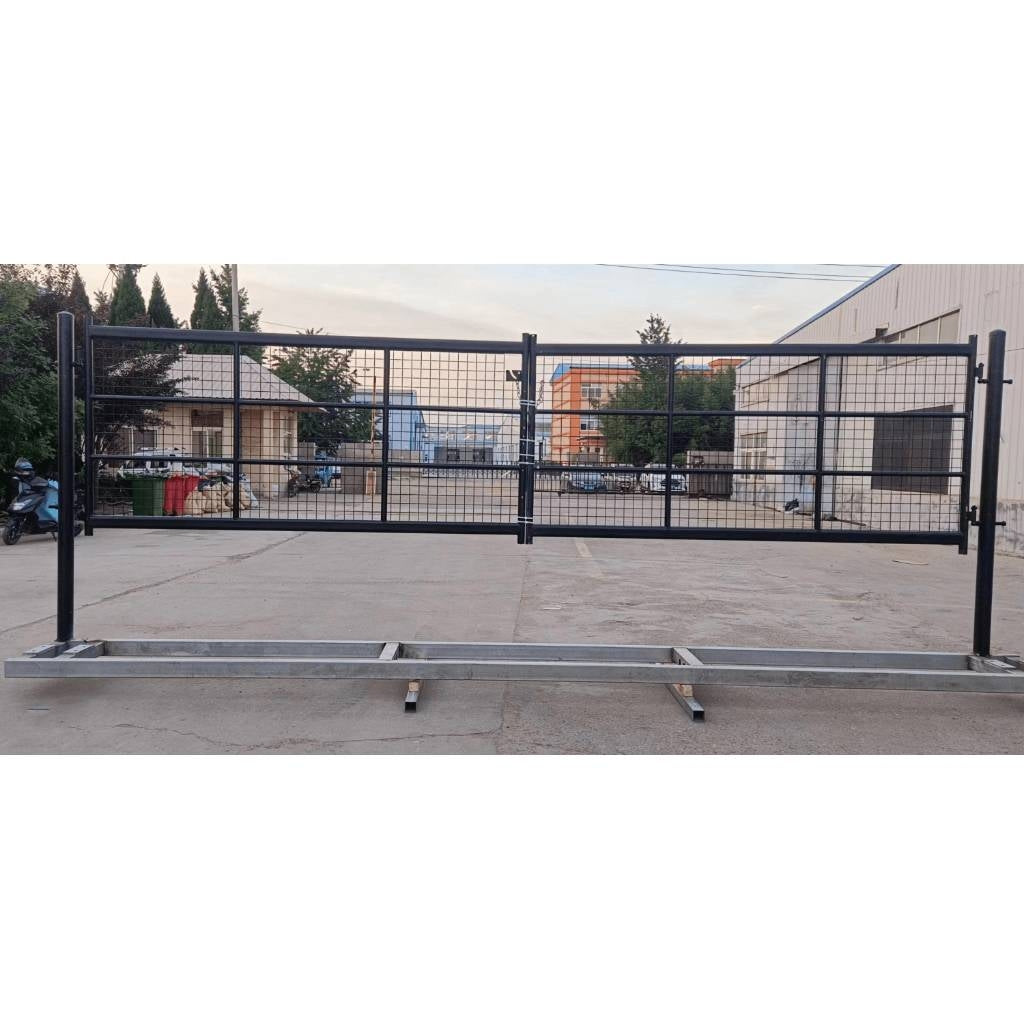

18 ft Farm Metal Grid Iron Gate

Product Overview

The 18 ft Farm Metal Grid Iron Gate from Chery Industrial is a heavy-duty, high-strength access solution engineered for agricultural, rural, and industrial properties. Constructed with robust steel grid design, this gate delivers exceptional durability, security, and longevity, ideal for securing driveways, pastures, livestock enclosures, and farm perimeters while accommodating large vehicles and equipment.

Core Features

  • Heavy-gauge steel construction with hot-dip galvanization for anti-rust and corrosion resistance
  • Reinforced grid design (square pattern) for structural stability and impact resistance
  • Full-frame welded construction to withstand heavy use and harsh outdoor conditions
  • Pre-drilled mounting holes for easy installation with standard gate hardware
  • Smooth-operating hinge points for easy opening/closing (even with frequent use)
  • UV-resistant powder coating (optional: black/green/brown) for long-term outdoor protection
  • Reinforced bottom rail to prevent sagging under heavy loads or livestock pressure
  • Compatible with standard gate latches, locks, and automation systems
  • Wide 18ft span eliminates the need for multiple gates in large driveways/pastures

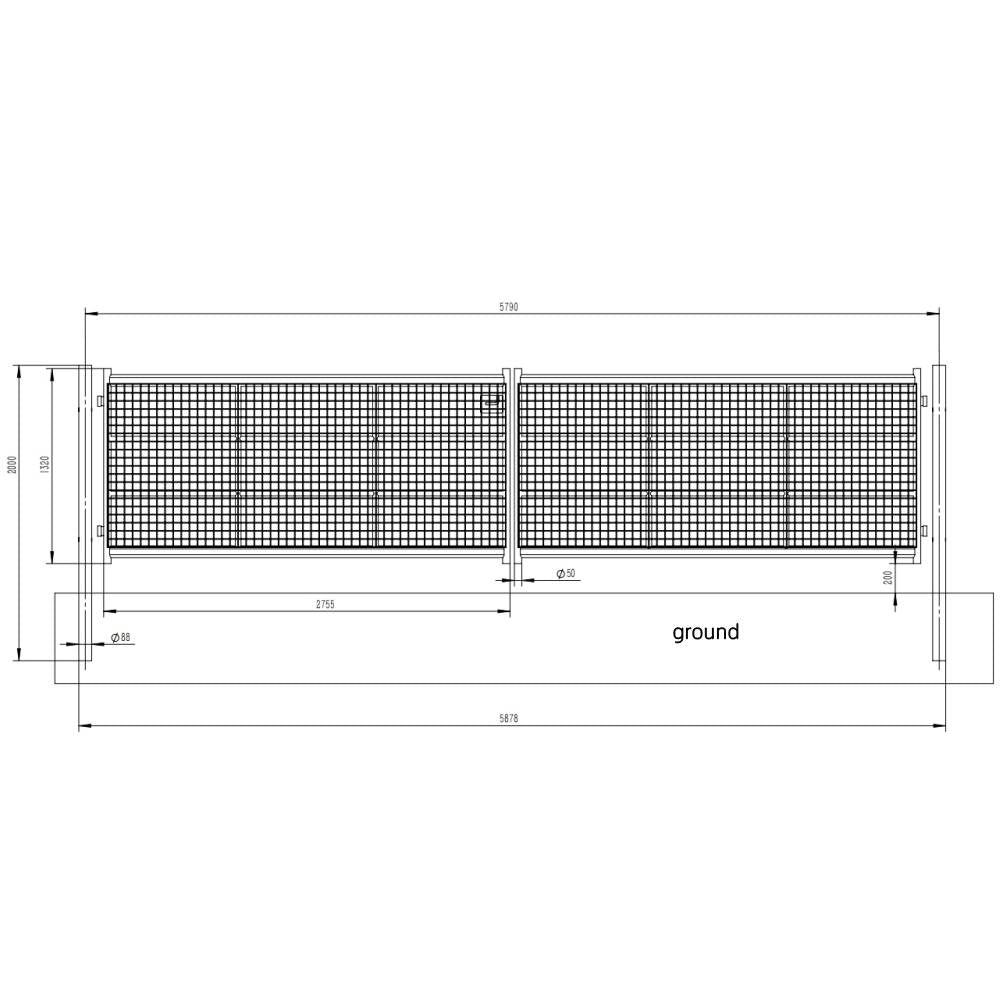

Technical Specifications

Parameter Value
Overall Width 18 ft (5486 mm)
Standard Height 6 ft (1829 mm) / 7 ft (2134 mm) (optional)
Material Hot-Dip Galvanized Steel (Grade Q235)
Steel Thickness (Grid) 1.6mm (16-gauge) / Frame: 2.5mm (10-gauge)
Grid Pattern 4" x 4" (100mm x 100mm) Square Grid
Net Weight 450 lbs (204 kg) (6ft height) / 520 lbs (236 kg) (7ft height)
Finish Options Hot-Dip Galvanized (raw) / Black/Green/Brown Powder Coated
Mounting Type Post-Mounted (compatible with 4"x4" / 6"x6" steel/wood posts)
Load Capacity Up to 5000 lbs (static load resistance)
Operating Temperature Range -40°F to 160°F (-40°C to 71°C)

Key Application Scenarios

This 18ft farm gate is ideal for agricultural driveways, livestock pasture access, ranch perimeter security, industrial property entrances, and rural road access points. It accommodates large farm equipment (tractors, combines, trucks), while the reinforced grid design prevents livestock escape and unauthorized entry.

Product Advantages

  • Hot-dip galvanization provides 20+ years of rust-free use in harsh outdoor conditions
  • 18ft wide span reduces installation time and cost vs. multiple smaller gates
  • Reinforced frame prevents sagging and warping over time (common with cheap steel gates)
  • Compatible with automated gate openers for remote/electric operation
  • Low maintenance - no annual painting or treatment required (for galvanized finish)
  • Versatile finish options match rural/agricultural aesthetics (green/brown blend with landscape)
MD0126983
